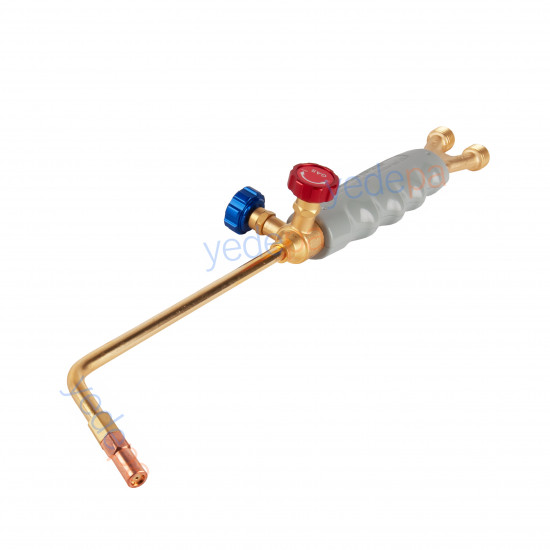

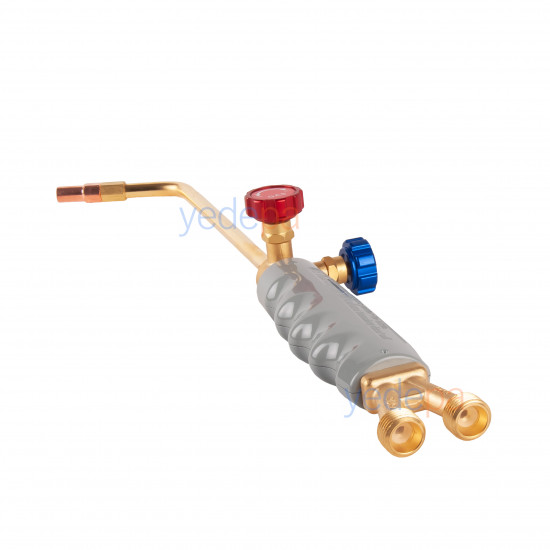

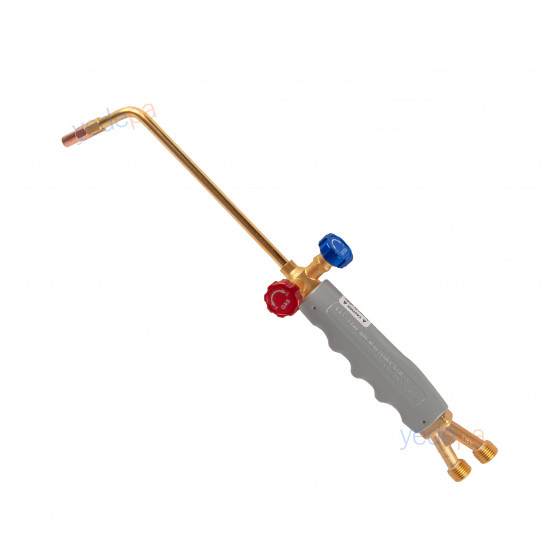

Artiko ART001D / RTM PG001D Oxy-Fuel Welding Torch, Large Size

The Artiko ART001D (manufacturer code RTM PG001D) is a large-size welding torch that operates with a mixture of oxygen and fuel gas. Thanks to its long brass neck, it allows work in spots that are hard to reach by hand, such as behind evaporators, inside columns and on cold room panels. The manufacturer describes this model directly as a professional torch for cold storage projects; it provides a stable, high-temperature flame for copper tube brazing and heating work.

Long-Neck Professional Torch for Cold Storage and Plumbing Projects

• Product Code: 01 17 12
• Model: Artiko ART001D · manufacturer code RTM PG001D
• Size: Large (long neck)
• Fuel Gas: Works with propane, LPG, MAPP and butane (mixed with oxygen)
• Control Valves: Dual valves — red GAS and blue OXYGEN, precise adjustment over a wide range
• Triple Protection: Windproof · anti-flashback · impact-resistant (anti-collision)
• Body: Brass body and long neck, heat-insulated rubber handle, bent tip

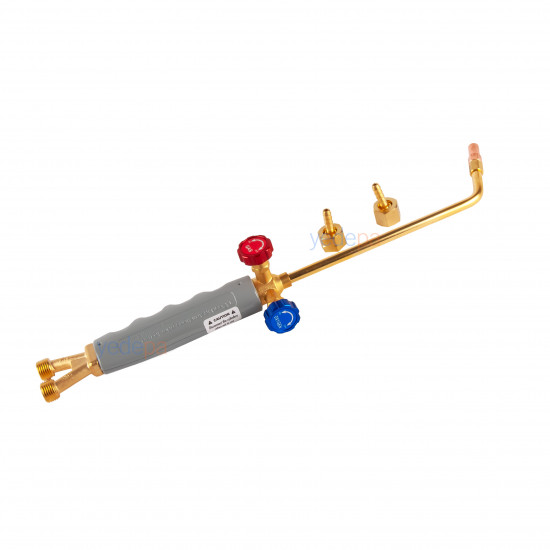

• Set Contents: Torch + 2 brass hose nipples (for gas and oxygen connection)
• Certificate: CE

Technical Specifications, Triple Protection and Usage Notes

• Features highlighted by the manufacturer: adaptation to different types of work with interchangeable multiple tips · precise flame adjustment over a wide range · compact and flexible use · stable flame, high temperature.
• Difference from the small size (ART001B): This model has a longer neck and is positioned for cold storage and large plumbing projects; triple protection (wind / flashback / impact) is also emphasized on the box. For tight, close-range work you may prefer the small model.
• Applications: non-ferrous metal welding (copper, brass) · ferrous metal welding · PMMA (acrylic) polishing · air conditioning and plumbing · automotive repair.
• 🔥 A flashback arrestor must still be fitted. The anti-flashback feature of the torch provides additional safety but does not replace the arrestor between the hose and the torch; use an arrestor against flashbacks that travel back to the cylinders.
• Flame adjustment and shut-down sequence: First open the gas valve and ignite, then slowly open the oxygen to obtain a neutral flame. When shutting down, close the gas valve first, then the oxygen valve.
• Disconnect the cylinders after use. As stated in the warning on the product, disconnect the cylinder connections at the end of the job and leave the hoses depressurized.
• Soot building up on the tip disturbs the flame; clean it gently with suitable tip cleaning wires, and do not enlarge the hole with a drill. Before work, check the connections for leaks with soap solution.
