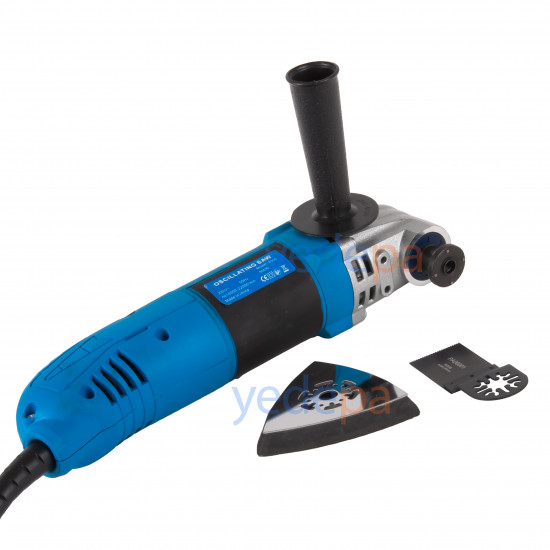

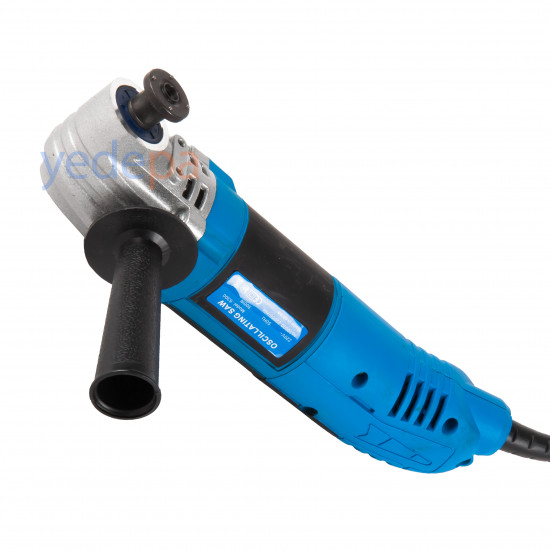

300W Oscillating Multi-Tool Cutting Saw Machine (Model: 6300)

300W Oscillating Multi-Tool Cutting Saw Machine (Model: 6300) is a multi-purpose tool designed for cutting, scraping and sanding in small areas. With its powerful 300W motor, this saw can work on various surfaces and offers the user a versatile experience. Thanks to its compact design, it is ideal for both professional use and home projects.

Technical Specifications

• Model: 6300
• Input Voltage: 220V ~ 50Hz
• Power: 300W
• No-Load Speed: 10,000 - 22,000 rpm
• Weight: 1.478 kg

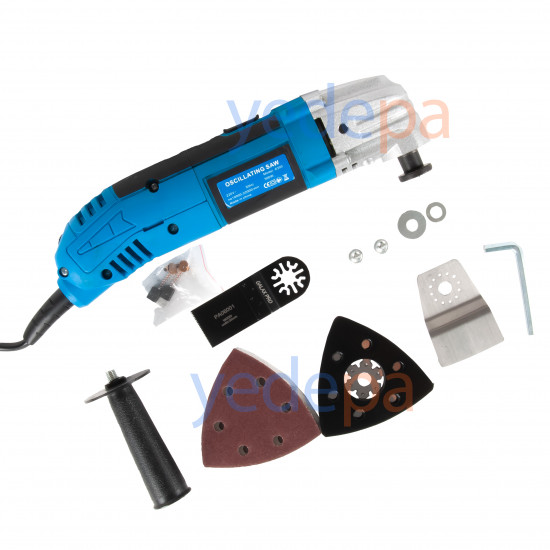

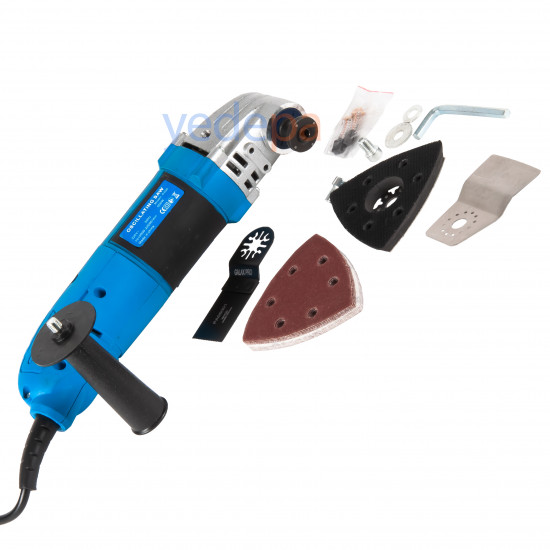

Package Contents

• 1 x 300W Multi-Purpose Saw
• 1 x User Manual
• 1 x HSS E-Blade
• 1 x HCS Saw Blade
• 1 x Sanding Pad
• 10 x Sandpaper

Sound and Vibration Levels

• Sound Pressure Level: 86.3 dB(A)
• Sound Power Level: 97.3 dB(A)
• Vibration Level: ah = 5.134 m/s²

Key Features

• Variable Speed Control: Six different speed levels let you select the right speed for your work.
• Multi-Purpose Use: Suitable for scraping, cutting, sanding and work on various surfaces.
• Compact and Lightweight Design: At 1.478 kg, it is easy to carry and comfortable during extended use.

Safety Instructions

• Protective Equipment: Wear safety glasses, gloves and hearing protection while working.
• Electrical Safety: If you use the device in damp environments, using a residual current device (RCD) is recommended. To prevent electric shock, the device should be supplied through a protection rated at 30 mA or less.
• Do Not Make Changes While Plugged In: Unplug the device before changing accessories or making adjustments.

Applications

This multi-purpose oscillating saw is suitable for cutting, scraping, sanding and detailed work on various surfaces. It is ideal for workshop jobs, construction projects and small renovations at home. It can be used safely on different materials such as wood, metal and plastic.

Maintenance and Cleaning

• Cleaning: Wipe the outer surface of the device with a dry or slightly damp cloth. Do not use water or solvents.
• Carbon Brushes: In case of excessive sparking, the carbon brushes must be checked by an electrician. Carbon brushes should only be replaced by qualified persons.

Storage and Waste Management

• Storage: Store the device in a dry place. Protect it from moisture and keep it in its original box.
• Waste Management: At the end of its service life, the device must be disposed of in accordance with local recycling rules. For environmentally friendly recycling, it must not be mixed with household waste.
