28BYJ48 12V DC AC Louver (Swing) Stepper Motor

Moving the air direction louvers (flap/louver) of the indoor unit in split air conditioners and ventilation systems, the 28BYJ48 12V DC Stepper Motor allows your unit to adjust its airflow angle precisely and quietly. Thanks to its 5-wire design with a ready-fitted socket, it can easily be installed plug-and-play in place of faulty louver motors. It is used as a standard swing motor in the indoor units of many brands, especially air conditioners running on 12V.

Wide Compatibility and High-Torque Control

If your air conditioner’s louvers do not move up and down, get stuck at one point or keep clicking while swinging, the part responsible is usually this swing motor. The reduction gear mechanism inside the unit gives the motor high torque, holding the air louvers steadily at the desired angle. The specially cut metal shaft (D-shaft), also visible in the photo, lasts much longer than plastic shafts and does not strip or wear over time.

Key Technical Features and Equipment

Manufactured for heavy-duty conditions and offering wide compatibility, the technical details of this stepper motor are as follows:

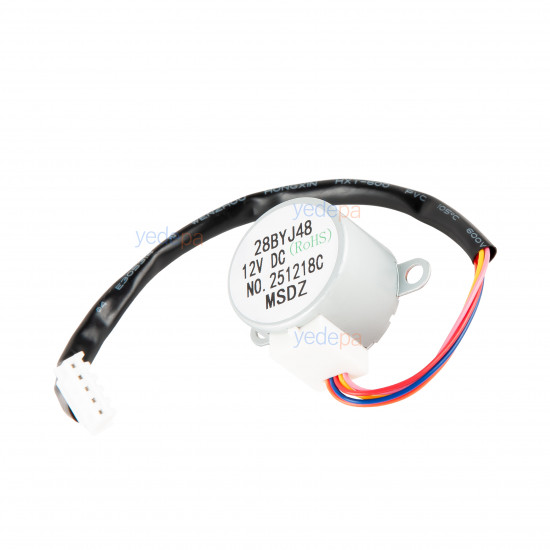

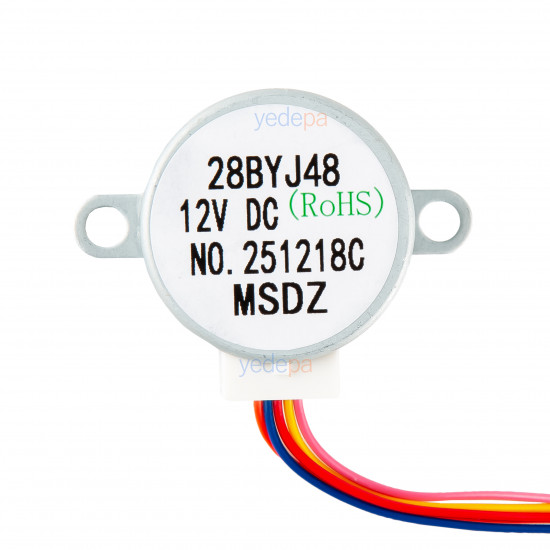

• Model: 28BYJ-48 (MSDZ 251218C / RoHS)
• Operating Voltage: 12V DC
• Connection Type: 5 wires (Red, Pink, Yellow, Orange, Blue) and a 5-pin white terminal socket.

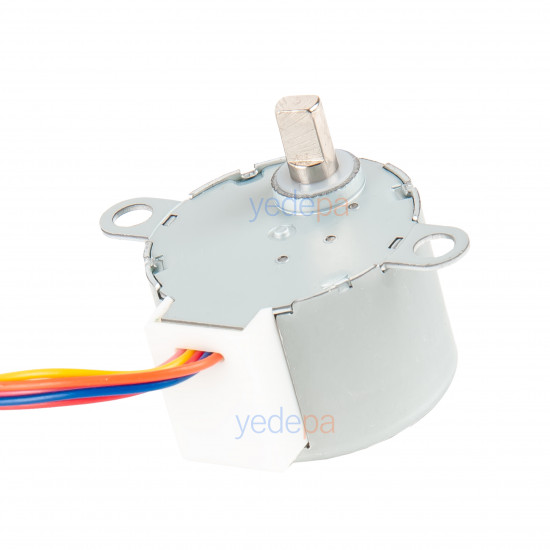

• Shaft Design: Durable metal shaft with D-type cut that fits the louver mechanism exactly.
• Applications: AC louver (swing/flap) control, ventilation dampers, security cameras (PTZ) and various DIY automation projects.
• Compatible Models: All split air conditioners that use a 12V 28BYJ48 in the indoor unit, notably Arçelik, Beko, Vestel, Midea, Haier, AUX, LG, Daikin and Samsung.

Practical Usage Note for Technicians in the Field

Technician’s Note: Before replacing the motor, always make sure that the operating voltage going from your air conditioner’s main board to the motor is 12V DC (some air conditioners use the 5V version of the same motor; check the label of your old motor). After removing your old motor, confirm that the socket type (5-pin) and shaft shape (D-cut metal shaft) match the mechanism. When screwing the motor into place during installation, avoid forcing the flap mechanism by hand, otherwise you may damage the delicate reduction gears inside the motor.
