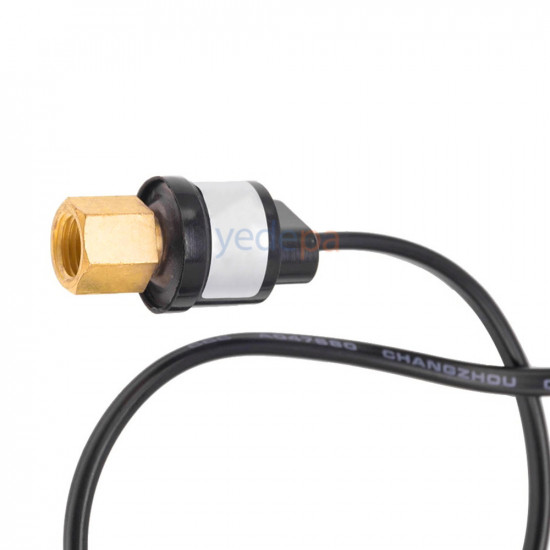

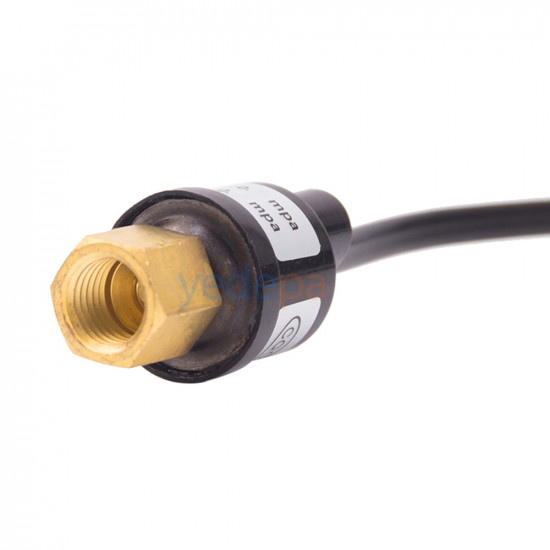

1.5 / 0.5 Bar SPST Low Pressure Switch – 2m Cable, Industrial Type Low Pressure Switch

1.5 / 0.5 Bar Low Pressure Switch is an industrial-type pressure switch that provides safe and precise control in low-pressure systems. With its SPST (single pole, single throw) design, this switch is closed at atmospheric pressure. Thanks to its 2-meter cable design, it offers easy installation and high flexibility.

Main Features

• Model: LP 1.5 / 0.5
• Operating Pressure Range: Open: 1.5 Bar / Close: 0.5 Bar
• Switch Configuration: SPST – Normally closed (circuit closed at atmospheric pressure)
• Cable: 2 meters, 2-wire
• Operating Temperature Range: Ambient: -30°C to +80°C / Media: -50°C to +120°C
• Service Life: 100,000 cycles

Electrical Specifications

• Voltage & Current: 50/60Hz, 36VDC, 250VAC, 3A
• Pilot Duty (VA): 24V: 125VA, 120V: 375VA, 240V: 375VA
• Dielectric Strength: 750 VRMS (across open switch), 1550 VRMS (terminal to body)

Pressure Rating

• Proof Pressure: 250 PSI
• Burst Pressure: 5000 PSI

Applications

This low pressure switch is preferred for safe circuit management in HVAC systems, compressors, refrigeration and heating applications, automation control panels, water pumps and other low-pressure industrial systems.

Product Advantages

• Increases system safety with precise pressure control
• Can be used in harsh environments thanks to its wide temperature range
• Long-lasting, durable construction
• Easy installation with a 2-meter connection cable
• Maintenance-free compact design
