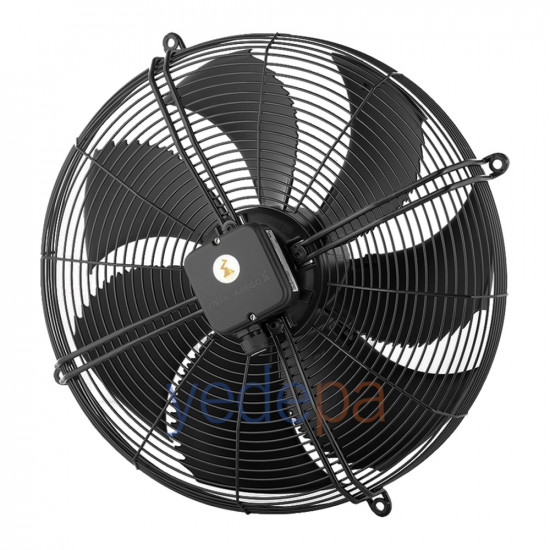

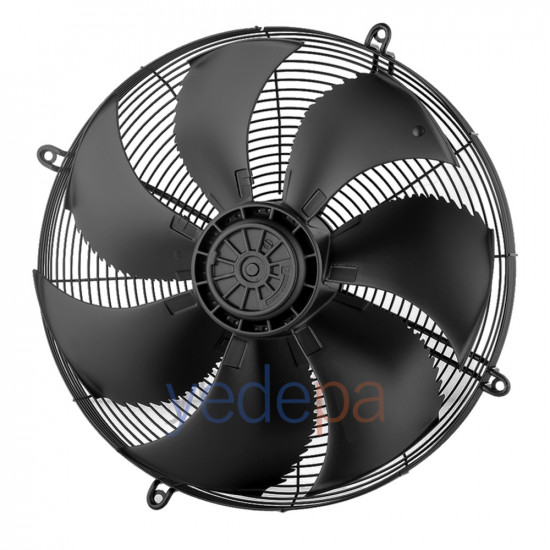

Ziehl-Abegg FN050-6EK.4F.V7P1 Axial Fan (154149) – 500 mm, 230V, 900 RPM, 5,770 m³/h

The Ziehl-Abegg FN050-6EK.4F.V7P1 (article 154149) is a 500 mm axial fan with FE2owlet sickle blades. The blade profile is derived from owl-wing aerodynamics: with its serrated trailing edge and winglet tips, it produces noticeably lower noise at the same airflow. The 6-pole external rotor motor runs at ~900 rpm — the choice of the low-speed, quiet class for condensing units and cold room units.

900 RPM Quiet Condenser / Evaporator Fan

Compared with the 4-pole (1,380 rpm) version of the same housing, it produces less noise and draws less power; the 900 rpm model is standard for operations with night-time operating restrictions and for cold rooms near residential areas. The motor is inside the rotor with thermal protection; the fan comes with a guard grille and operates in suction (V) direction.

Technical Specifications

• Brand / Model: Ziehl-Abegg FN050-6EK.4F.V7P1 | Article: 154149
• Blade Diameter: 500 mm — FE2owlet sickle profile | Airflow: 5,770 m³/h (free blowing)
• Motor: 6-pole external rotor, ~900 rpm
• Power Supply: 230 V ~ 50 Hz (single phase)
• Power / Current: 0.27 kW · 1.25 A
• Direction: Suction (V) | Guard grille included | Weight: ~11 kg

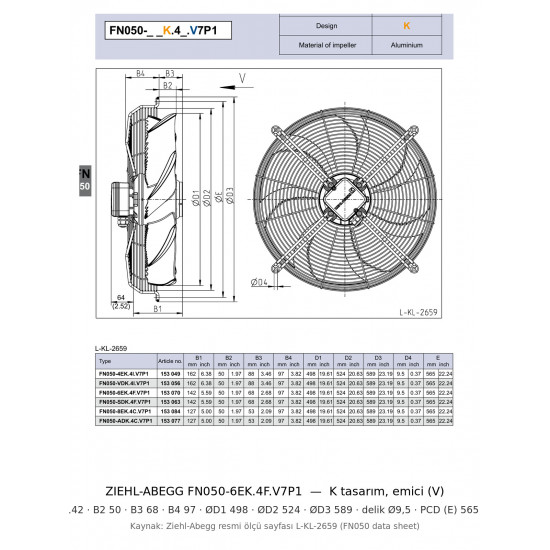

• Mounting Dimensions: ØD1 498 · grille ØD3 589 · pitch circle diameter (PCD) 565 mm, Ø9.5 holes — official Ziehl-Abegg dimension drawing (L-KL-2659) in the 2nd image
• Applications: Condensing units, cold room units, dry coolers, commercial refrigeration

• 🔧 Do not upset the blade balance during installation: Carry the fan by the support ring, not by the blades.
• Other motor options for the same housing are available on our site: 4-pole 1,380 rpm (FN050-4EK) and two-speed 3-phase (FN050-VDK).
