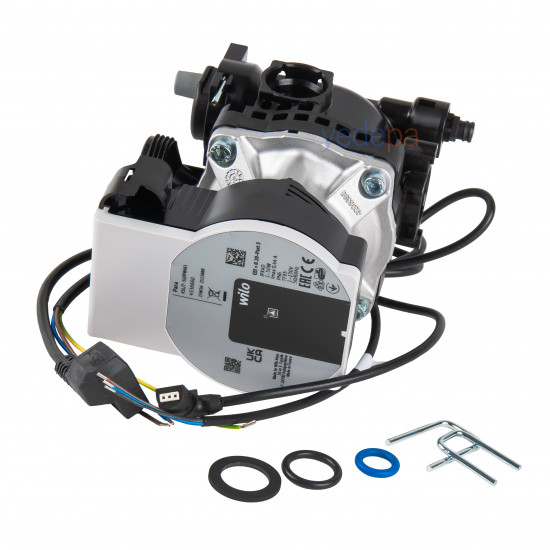

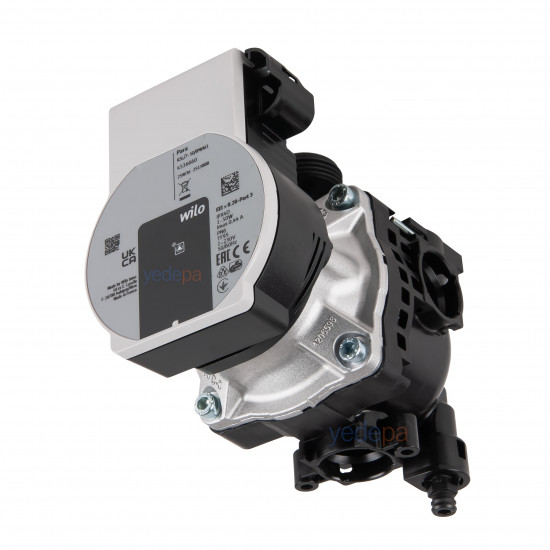

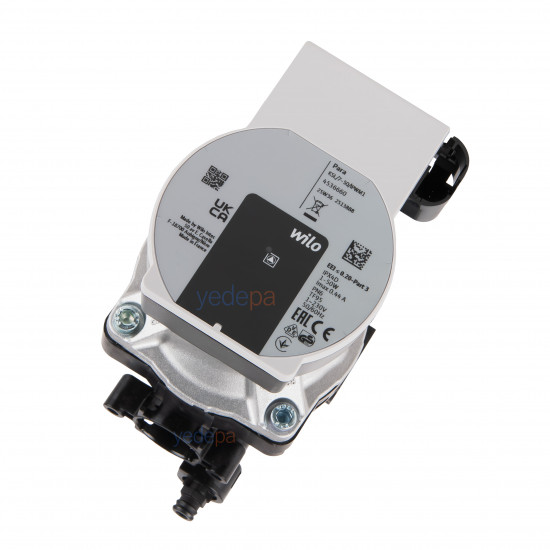

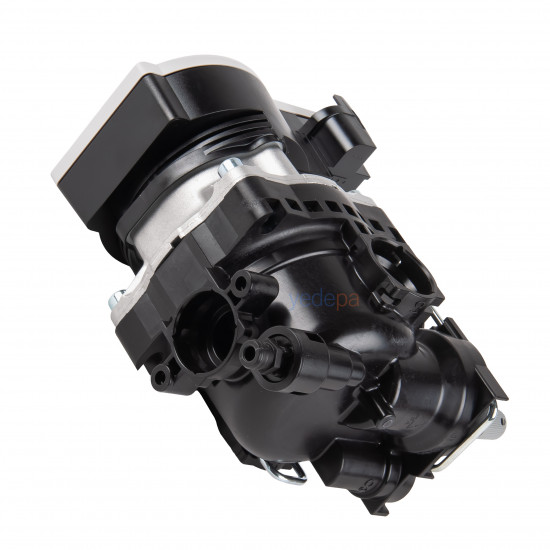

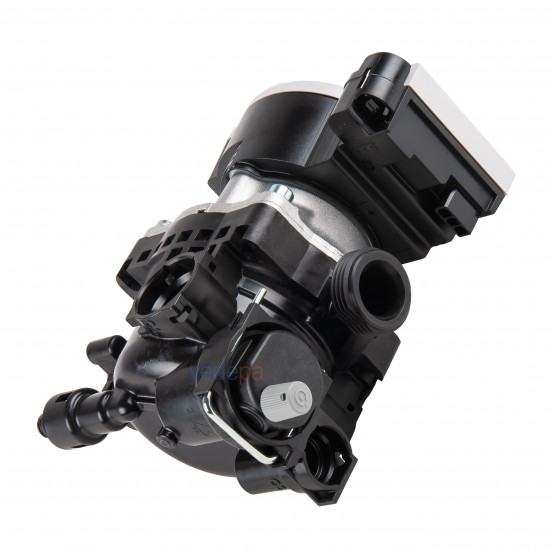

Wilo Para KSL/7-50/IPWM1 High-Efficiency Circulation Pump for Combi Boilers and Heating Systems

The Wilo Para KSL/7-50/IPWM1 circulation pump is designed to ensure balanced, continuous and efficient circulation of water in the pipework of combi boilers and heating systems. Thanks to the iPWM control mode, it automatically adjusts speed and performance according to signals from the boiler PCB.

Its high-efficiency motor provides low energy consumption while improving the overall efficiency of the heating system. Thanks to its quiet operation, it is a reliable choice in residential combi boiler applications.

It is an original Wilo circulation pump widely used in service work for insufficient heating, radiators heating up slowly, circulation problems or pump failures.

Product Specifications

• Part Type: Circulation Pump
• Brand: Wilo
• Model: Para KSL/7-50/IPWM1
• Control Mode: iPWM
• Energy Efficiency Index (EEI): ≤ 0.20
• Maximum Power Consumption: 50 W
• Protection Class: IPX4D
• Power Supply: 1~230 V (+10 / -15%), 50/60 Hz
• Approvals: CE

Hydraulic Technical Data

• Maximum Operating Pressure: 6 bar
• Maximum Fluid Temperature: 95 °C
• Minimum Fluid Temperature: 0 °C
• Maximum Ambient Temperature: 70 °C
• Minimum Ambient Temperature: 0 °C

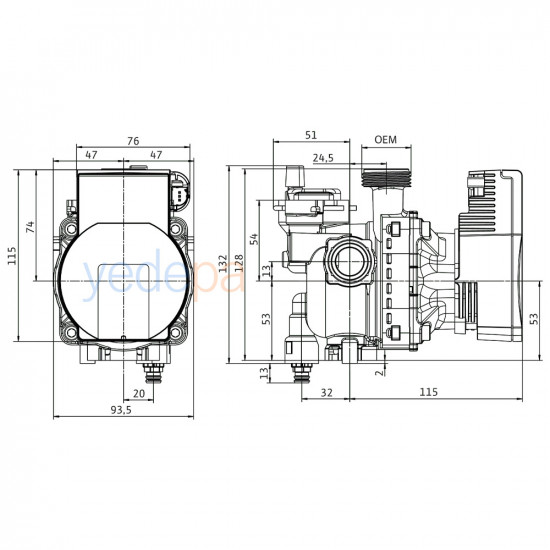

Connection and Installation Information

• Suction Connection: OEM
• Discharge Connection: G 1

Materials

• Pump Housing: PA66-GF30 (glass-fiber reinforced plastic)

Applications

• Combi boiler systems
• Condensing combi boiler applications
• Compact heating systems
• OEM combi boiler manufacturer applications

Installation and Safe Use

Before installation, the connection type and dimensional compatibility of the existing pump must be checked. Electrical connections must be made in accordance with the boiler manufacturer's instructions. For long and safe use, installation by an authorized service or an experienced technician is recommended.
