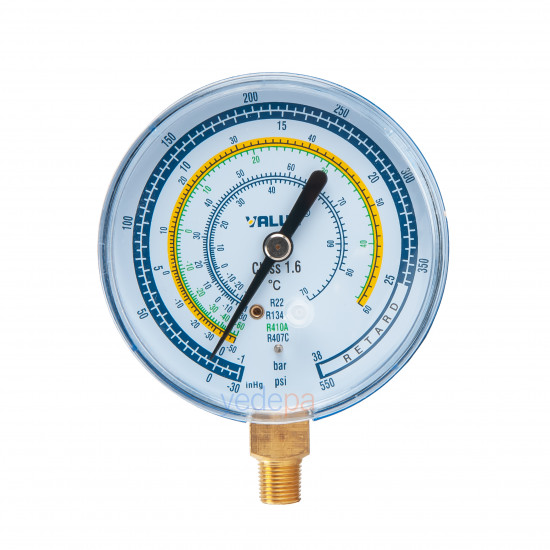

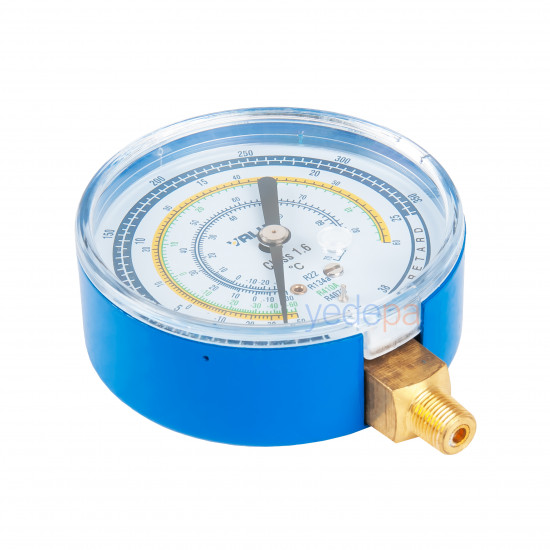

Value Ø80 Low Pressure Manifold Gauge (R410A/R407C/R22/R134A)

Specially designed for precise vacuum and suction line pressure measurements in refrigeration and air conditioning (HVAC-R) systems, the Value Ø80 Low Pressure Manifold Gauge is one of the most reliable measuring tools used by professional technical service teams in the field.

Multi-Refrigerant (R410A/R407C/R22/R134A) Pressure Gauge

Working in full compatibility with R410A, R407C, R22 and R134A, the refrigerants most commonly encountered in the industry, this model saves our technicians the trouble of carrying separate gauges for different systems thanks to its multi-refrigerant scale. The blue color-coded dial provides a visual standard for low pressure line work and enables fast operation in the field.

Class 1.6 Accuracy and Technical Specifications

Manufactured in the Class 1.6 accuracy class, the gauge provides clear readings with the lowest margin of error during refrigerant charging, leak testing and evacuation. The main features of the device are as follows:

• Brand: Value
• Product Type: Low Pressure (Suction) Manifold Gauge
• Compatible Refrigerants: R410A, R407C, R22, R134A (Special color-coded inner scale)
• Dial Diameter: Ø80 mm (Enlarged display offering high readability)
• Pressure and Vacuum Range: -30 inHg ~ 800 psi (Maximum withstand) / 550 psi (38 bar) clear reading scale and retard zone on the dial.
• Accuracy Class: Class 1.6 (Full compliance with industrial measurement standards)
• Connection Type: Corrosion-resistant, leak-tight brass bottom connector.

Practical Usage Note for Field Technicians

Technician's Note: When evacuating inverter air conditioners, industrial cabinets or chiller units, you can carry out a much more precise charging process thanks to the stable mechanism that prevents needle vibration. The extended RETARD zone on the dial protects the internal mechanism of the gauge during sudden pressure fluctuations, offering long-lasting and safe use.
