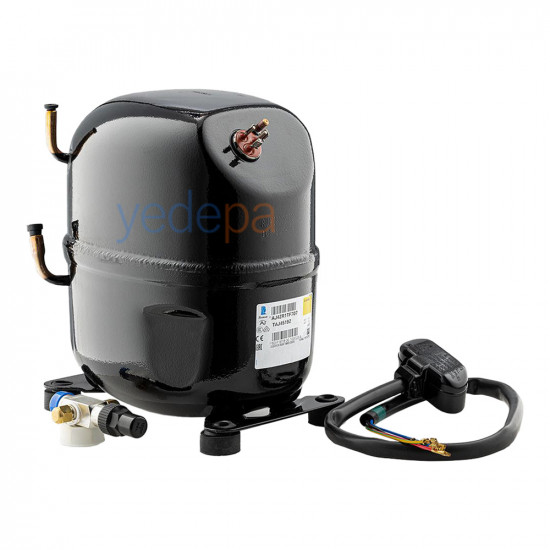

Tecumseh TAJ 4519 Z 1.5 HP Refrigeration Compressor R-404A

The Tecumseh TAJ 4519 Z is a 1.5 HP refrigeration compressor compatible with R-404A refrigerant. This compressor offers high performance and reliability for medium and high back pressure applications.

Features

• Model: Tecumseh TAJ 4519 Z
• Power: 1.5 HP
• Voltage: 400V, 3 phase, 50Hz (or 440V, 3 phase, 60Hz)
• Refrigerant: R404A (also compatible with R507A, R449A, R448A, R452A)
• Displacement: 34.45 cm³
• Oil Type: Polyolester (POE)
• Oil Quantity: 887 cm³
• Connection Type: 2 Valves
• Suction Line: 5/8" (15.9 mm)
• Discharge Line: 3/8" (9.5 mm)
• Design: Hermetic, Reciprocating
• Motor Type: TRI (Three-Phase Induction)

Cooling Capacity

• Cooling Capacity (W): 2664 W at -10°C evaporating temperature (approximately 9,090 BTU/h)
• Cooling Capacity Conditions: Condensing temperature 54.5°C, Suction gas temperature 46°C (CECOMAF conditions)

Electrical Data

• Rated Load Amps (RLA): 4.05 A
• Locked Rotor Amps (LRA): 22 A
• Maximum Continuous Current (MCC): Not specified

Technical Data

• Weight: Approximately 25 kg
• Dimensions (Height): 282 mm
• Sound Pressure Level: 67 dB(A) at 1m
• Operating Temperature Range: -15°C to +15°C evaporating (Medium/High Back Pressure)
• Condensing Temperature: 54.5°C
• Origin: France

The Tecumseh TAJ 4519 Z compressor stands out with its 1.5 HP power and compatibility with various refrigerants. It offers high efficiency with its hermetic reciprocating design and TRI motor type. With a displacement of 34.45 cm³ and wide cooling capacity, it delivers 2664 W at -10°C evaporating. Weighing approximately 22 - 25 kg, this compressor is an ideal option for various refrigeration applications. It also offers quiet operation with a sound pressure level of 67 dB(A) at 1m. It has been tested according to CECOMAF measurement conditions.
