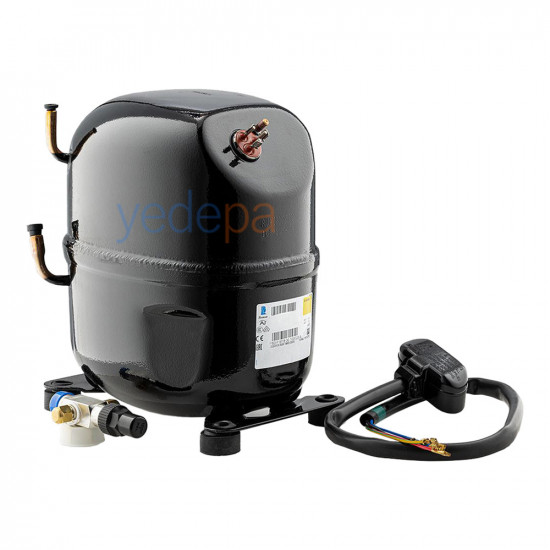

Tecumseh TAJ 2464 Z 1.5 Hp Refrigeration Compressor R-404A

Product Features

• Model: Tecumseh TAJ 2464 Z
• Power: 1.5 HP
• Voltage: 380-400V, 3-phase, 50Hz (or 440V, 3-phase, 60Hz)
• Refrigerant: R404A (also compatible with R507A)
• Displacement: 34.45 cm³
• Oil Type: Polyolester (POE)
• Oil Charge: 887 cm³
• Connection Size:
• Suction Line: 5/8" (15.9 mm)
• Discharge Line: 3/8" (9.5 mm)
• Design: Hermetic, Reciprocating
• Motor Type: TRI (Three-Phase Induction)

Cooling Capacity

• Cooling Capacity (W):
• At -35°C evaporating temperature: 760 W
• At -30°C evaporating temperature: 1096 W
• At -20°C evaporating temperature: 1605 W
• At -15°C evaporating temperature: 1887 W
• At -10°C evaporating temperature: 3030 W (approximately 10,340 BTU/h)
• Cooling Capacity Conditions: Condensing temperature 54.5°C, suction gas temperature 46°C (CECOMAF conditions)

Electrical Data

• Rated Load Current (RLA): 3.3 A

Technical Data

• Weight: 25 kg
• Dimensions (Height): 282 mm
• Sound Pressure Level: 67 dB(A) at 1m
• Operating Temperature Range: -40°C to -12.2°C evaporating (Low Pressure)
• Condensing Temperature: 54.5°C for nominal capacity
• Expansion Device: Capillary Tube or Expansion Valve
• Origin: France
