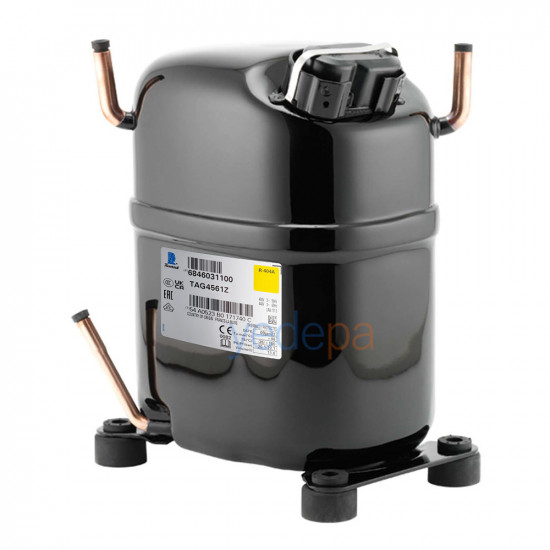

Tecumseh TAG 4561 Z 5 Hp Refrigeration Compressor R-404A (Brazed)

Product Features

• Model: Tecumseh TAG 4561 Z
• Power: 5 HP
• Connection Type: Brazed
• Voltage: 400V, 3-phase, 50Hz
• Refrigerant: R404A (compatible with R507)
• Cylinder Displacement: 112.5 cm³
• Oil Type: Polyolester (POE)
• Oil Charge: 1960 cm³
• Connection Size: Suction line: 1-1/8" (28.6 mm)
• Design: Hermetic, Reciprocating
• Motor Type: Three-phase induction

Cooling Capacity

• Cooling Capacity (W): At -10°C evaporating and 45°C condensing temperature: 7107 W (approx. 24,240 BTU/h)

Electrical Data

• Rated Current (RLA): 15.3 A

Technical Data

• Weight: 46 kg
• Sound Level: 83 dB(A)
• Height: 381 mm
• Expansion Device: Capillary Tube or Expansion Valve
• Operating Temperature Range: -15°C to +15°C evaporating (Medium/High Back Pressure)
• Condensing Temperature: 45°C to 55°C
• Origin: France

Product Description

The Tecumseh TAG 4561 Z 5 Hp refrigeration compressor is an excellent choice for commercial refrigeration systems. With a cooling capacity of 7107 Watt and a cylinder displacement of 112.5 cm³, this model is designed to meet large commercial refrigeration needs. The use of R404A refrigerant provides energy efficiency and high performance. It is also compatible with R507 refrigerant. Of French origin, this compressor offers long-lasting and reliable refrigeration solutions.

Applications

The Tecumseh TAG 4561 Z is ideal for cold storage rooms, beverage coolers and similar applications in supermarkets, restaurants and other large commercial premises.

Installation and Safety Information

Installation and maintenance should be carried out by authorized services or expert technicians, paying attention to electrical safety precautions. The brazed connection system offers flexible installation options and convenience.

Conclusion

The Tecumseh TAG 4561 Z 5 Hp refrigeration compressor offers high capacity and reliable performance for your commercial refrigeration needs. It is ideal for professionals looking for an energy-efficient and long-lasting solution.
