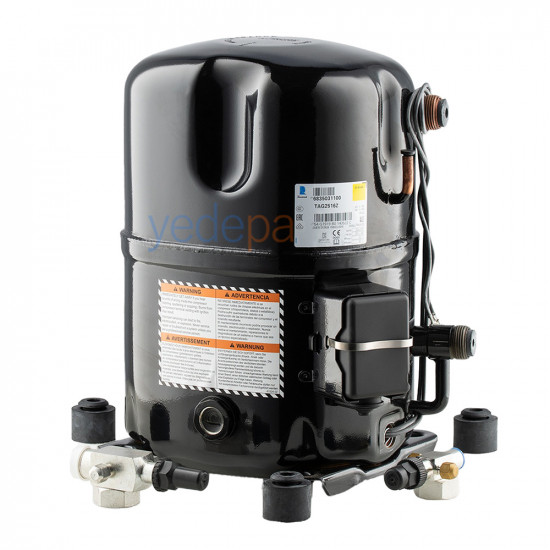

Tecumseh AG 2516 P-TZ (Old Code: TAG 2516 Z) 5 Hp R-404A Refrigeration Compressor

The TAG 2516 Z compressor by Tecumseh (France), well known in commercial refrigeration, is now produced under the code AG 2516 P-TZ following the brand's global catalogue update. The code change is only a naming standard: housing dimensions, connection layout and cooling capacity are identical. You can fit this original compressor with its new code in place of a failed TAG 2516 Z as a direct drop-in, without modifying the chassis or the fittings.

New Code and Old Code Cross-Reference

• New Model Code: Tecumseh AG 2516 P-TZ (AG2516P-TZ)
• Old Model Code: Tecumseh TAG 2516 Z (TAG2516Z)
• Code Suffix: TZ = three-phase motor, 400 V 3~ 50 Hz / 440 V 3~ 60 Hz
• Motor Power: 5 HP
• Cooling Capacity (R-404A, 50 Hz): 1,975 W / 6,740 BTU/h (−35 °C evaporating / +40 °C condensing, EN12900)
• Application: Low back pressure (LBP) deep freezing, evaporating −40 … −10 °C
• Approved Refrigerants: R-404A, R-452A, R-454C, R-455A
• Displacement: 112.5 cm³
• Current (50 Hz): RLA 4.9 A, LRA 47 A
• Oil: POE (polyolester), 1760 cm³

Product Features

• Model: Tecumseh TAG 2516 Z
• Power: 5 HP
• Voltage: 380-460V, 3-phase, 50/60Hz
• Refrigerant: R404A (also compatible with R507A)
• Displacement: 112.5 cm³
• Oil Type: Polyolester (POE)
• Oil Charge: 1960 cm³
• Connection: 2 Valves
• Connection Size:
• Suction Line: 7/8" (22.2 mm)
• Discharge Line: 5/8" (15.9 mm)
• Design: Hermetic, Reciprocating
• Motor Type: Three-Phase, High Starting Torque (HST)

Cooling Capacity

• Cooling Capacity (W):
• At -35°C evaporating and +40°C condensing temperature: 1975 W
• Under SC3 conditions: 3687 W (approximately 12,580 BTU/h)

Electrical Data

• Rated Power: 1723 W
• Running Current: 4.64 A
• Starting Current: 45 A
• Maximum Current: 9.81 A

Technical Data

• Weight: 47 kg
• Dimensions (Height): 368 mm
• Operating Temperature Range: -40°C to -12.2°C evaporating (Low Back Pressure)
• Noise Level: 77 dBA at 1m
• Cooling: Fan-cooled
• Expansion Device: Capillary Tube or Expansion Valve
