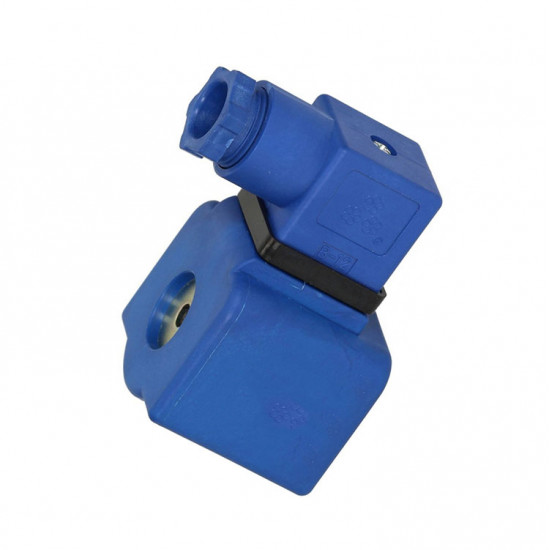

Sanhua MQ-A0322G-000001 Electronic Solenoid Valve Coil - 220-240V, 12W, IP67 Protection, 54 mm Connection Size

Product Description

MQ-A0322G-000001 is a high-quality electronic solenoid valve coil manufactured by Sanhua, offering excellent performance in refrigeration, air conditioning and heat pump systems. With its 220-240V AC operating voltage, low energy consumption and IP67 protection class, it puts durability first. The product has a 54 mm inlet-outlet connection size and offers easy installation.

Features

• Operating Voltage: 220-240V AC
• Power Consumption: 12W (50Hz) / 10W (60Hz)
• Protection Class: IP67 (full protection against water and dust)

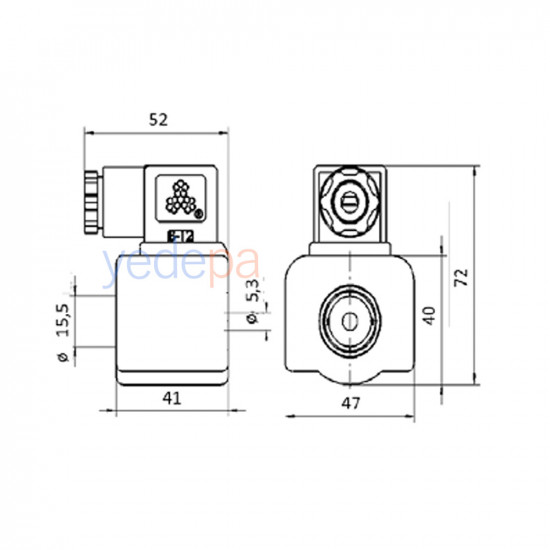

• Connection Size: 54 mm (Inlet-Outlet)
• Connection Type: DIN plug
• Insulation Class: Class F
• Ambient Temperature Range: -40°C to +80°C
• Approvals: CE, UL, EAC
• Applications: Compatible with R134a, R404A, R407C, R410A, R448A, R449A, R452A, R507A and other common refrigerants

Applications

The MQ-A0322G-000001 solenoid coil is used effectively in the following systems:

• Industrial and commercial refrigeration systems
• Air conditioning systems
• Heat pump applications

Advantages

• Economical operation with low energy consumption
• Long life in harsh conditions with IP67 protection class
• 54 mm connection size for quick and safe installation
• Wide operating temperature range
