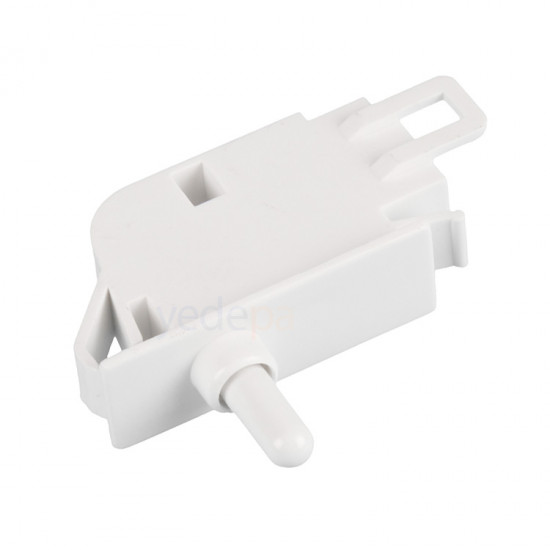

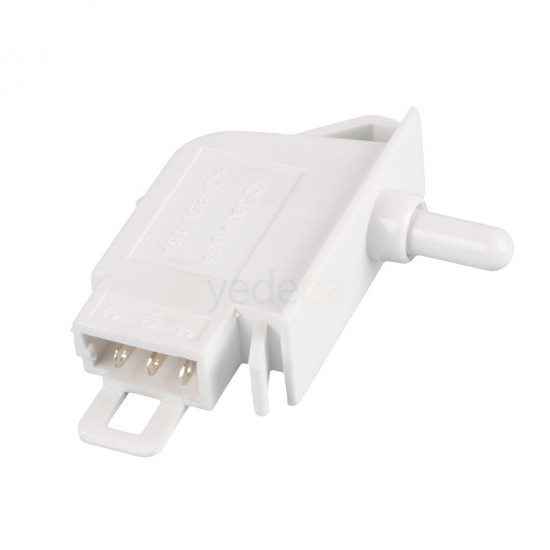

Samsung - LG Refrigerator Door Switch Button DA34-10108K

Designed for Samsung and LG refrigerators, the DA34-10108K Door Switch Button plays a critical role in the lighting and fan control functions of household appliances. Manufactured to imported quality standards, this part is compatible with both two- and three-connector versions.

Product Features

• Origin: Imported
• Code: DA34-10108K
• Rating: AC 250V 0.5A; AC 125V 1.0A
• Travel:
  • Contact travel: 1~2.5mm
  • Button travel: 3-10 mm
• Operating Force: <500g
• Contact Resistance:
  • Initial: ≤50mΩ
  • After life test: ≤30 Ω
• Insulation Resistance: ≥ 100MΩ
• Dielectric Strength: AC 50Hz 1800V 3s, no sparking or breakdown
• Service Life: At rated load - 120W lamp, 50,000 cycles at 30 cycles per minute, switches operate normally
• Mounting Hole: 38.5*12 mm

This door switch button can be used as a light switch in refrigerators, freezers and other household appliances. It is also suitable for power control in microwave ovens, disinfection cabinets, air conditioners and other electrical household appliances.

Compatibility and Applications

The DA34-10108K Door Switch Button is compatible with various refrigerator brands, primarily Samsung and LG. The three-connector model is ideal for meeting the lighting and fan control needs of your household appliances.
