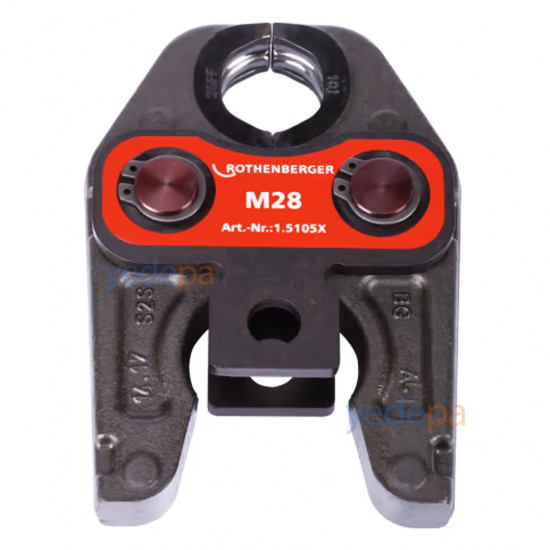

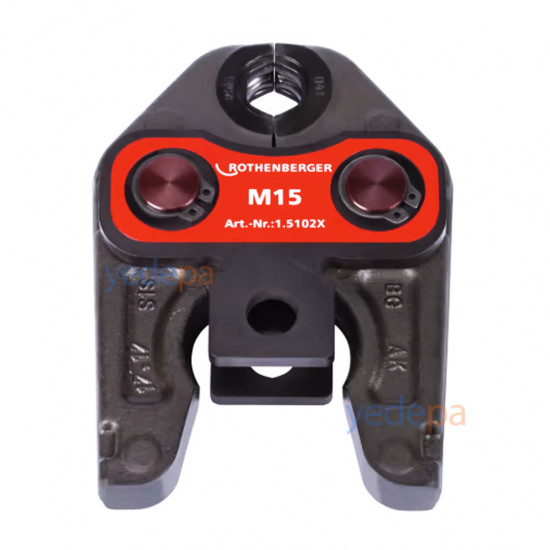

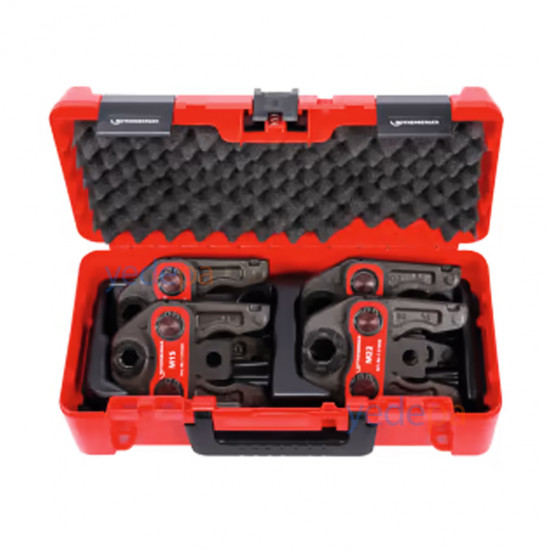

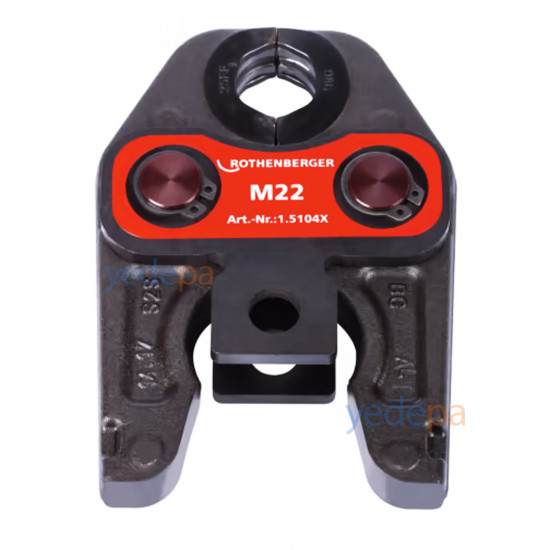

Rothenberger Press Jaw Set Standard M15-22-28

The Standard Press Jaw Set, with M contour and nominal widths of 15-35 mm, is ideal for system-compliant pressing on metal pipe systems. A special partial laser hardening process called DURA LAZR TEC extends the service life of the press jaw and ensures precise pressing. This minimizes wear within the pressing contour and doubles the number of pressing cycles compared to the previous model. With optimized corrosion protection, the quality of the press jaw is perfected throughout its entire service life. The integration of a 3-bolt synchronized mechanism makes it easier to open the press jaw with one finger in daily use. Thanks to the use of heavy-duty special steel, ROTHENBERGER Press Jaws are suitable for all press machines with a thrust force of 32-34kN.

Main Features

• DURA LAZR TEC process - Partial laser hardening provides the highest degree of hardness in high-stress areas. This results in minimal wear and high contour accuracy.
• New-generation press jaws made of forged, high-strength and flexible special steel provide 100% longer service life than their predecessor.
• The 3-bolt synchronized mechanism allows the press jaw to be opened with one finger.
• Precision-engineered contour for secure pressing.

Technical Data

• Working range diameter (min-max): 15 - 28 mm
• Press jaw system: Standard Press Jaw
• Press jaw contour: M

General Information

Product Information

• Product Code: 1000002067
• EAN/GTIN: 4004625463697

Weight and Dimensions

• Net Weight: 6.970 kg
• Gross Weight: 6.970 kg
• Package Length: 39.000 cm
• Package Width: 19.000 cm
• Shipping Weight: 6.970 kg
• Package Height: 12.000 cm

SKU Information

• SKU: 1000002067
