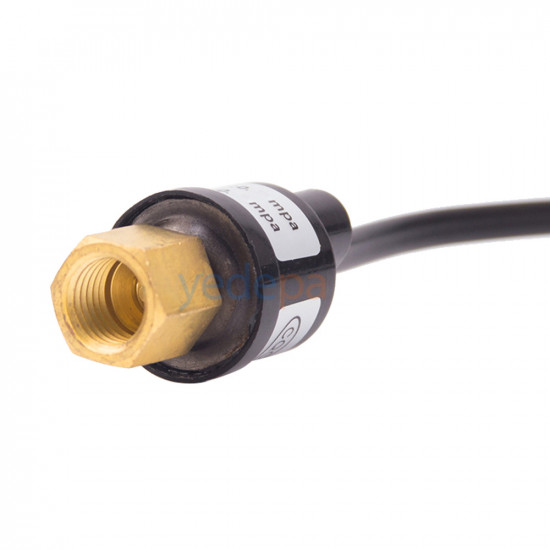

32 / 40 Bar SPST High Pressure Switch – 2m Cable, Industrial Type

32 / 40 Bar High Pressure Switch is an SPST pressure switch that provides control by detecting excessive pressure rises in industrial systems quickly and precisely. It is closed at atmospheric pressure. Its 2-meter two-wire cable makes installation easy. With its wide temperature range, it adapts to different climatic conditions.

Main Features

• Model: HP 32 / 40
• Operating Pressure Range: Open: 32 Bar / Close: 40 Bar
• Switch Configuration: SPST – Normally closed (circuit closed at atmospheric pressure)
• Cable: 2 meters, 2-wire
• Operating Temperature Range: Ambient: -30°C to +80°C / Media: -50°C to +120°C
• Service Life: 100,000 cycles

Electrical Specifications

• Voltage & Current: 50/60Hz, 36VDC, 250VAC, 3A
• Pilot Duty (VA): 24V: 125VA, 120V: 375VA, 240V: 375VA
• Dielectric Strength: 750 VRMS (across open switch), 1550 VRMS (terminal to body)

Pressure Rating

• Proof Pressure: 250 PSI
• Burst Pressure: 5000 PSI

Applications

This switch is used to keep excessive pressure under control in HVAC systems, industrial compressors, high-pressure hydraulic and pneumatic systems and automation panels. By detecting pressure rises in time, it helps protect equipment.

Product Advantages

• Precise sensing in high-pressure environments
• Stable performance over a wide temperature range
• Durable and long-lasting construction
• 2-meter cable for easy installation
• Maintenance-free compact design
