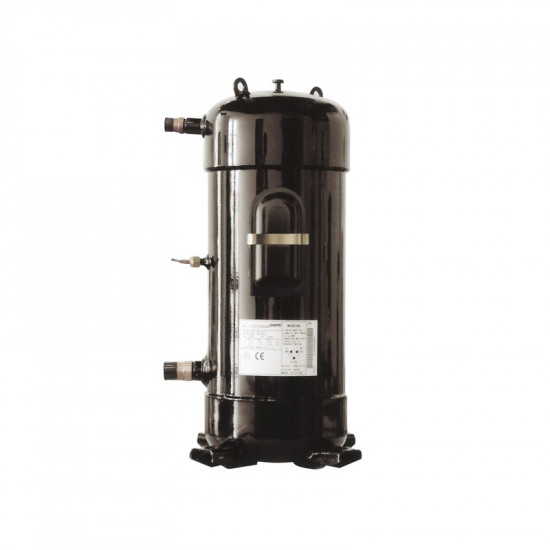

Panasonic C-SCP270H38B Valveless Scroll Compressor – 8 HP / 76,400 BTU, R410A

Panasonic Scroll Compressor C-Scp270H38B 8Hp Technical Specifications

General Features:

• Compressor Power: 8 HP
• Refrigerant: R410A
• Application Type: HBP (High Back Pressure) +7.2℃ / +54.4℃.
• Power Supply: 380-440V, 50-60Hz.
• Tandem Feature: The tandem configuration allows multiple compressors to operate together, offering an ideal solution for large-scale cooling needs.

Product Description:

The Panasonic Scroll Compressor C-Scp270H38B is a high-performance 8 HP compressor compatible with R410A refrigerant. It is suitable for various commercial and industrial refrigeration applications. With its tandem feature, multiple compressors can be run in parallel for large cooling requirements.

Applications:

This 8 HP Panasonic Scroll Compressor is suitable for use in places such as shopping malls, cold storage facilities, industrial plants and large commercial buildings. Thanks to its tandem feature, it is an ideal option where very high cooling capacities are required.

Manufacturer Technical Data

• Cooling Capacity: 22,394 W = 76,400 BTU/h
• Power Input: 7,399 W — COP: 3.03
• Rated Current: 13.10 A — MCC: 22 A
• Displacement: 89.2 cm³/rev
• Oil Charge: 2.80 L
• Net Weight: 69 kg
• Sound Level: 72 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R410A

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
