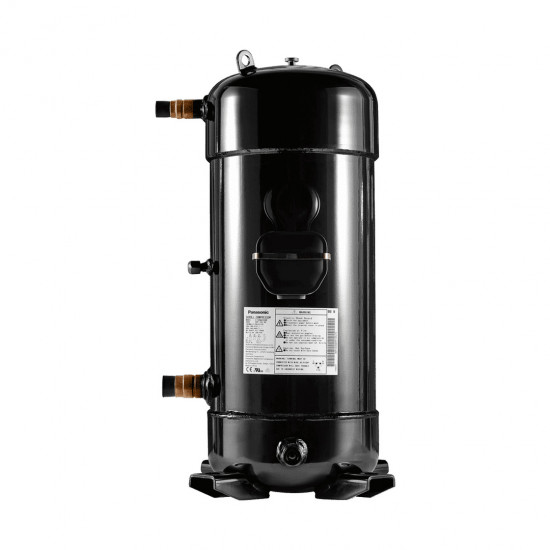

Panasonic LCC260RA04 Scroll Compressor – 15 HP / 156,000 BTU, R407C, 380V Three-Phase

The Panasonic LCC260RA04 is a 15 HP parallel (tandem-compatible) scroll compressor operating with R407C refrigerant. At standard conditions (Te 7.2 °C / Tc 54.4 °C) it delivers a cooling capacity of 45,711 W (≈156,000 BTU/h). With 260 cm³/rev displacement, it is the compressor for rooftop packaged air conditioners, chillers, central HVAC and large commercial refrigeration units.

260 cm³ Displacement: The Compressor for Large Commercial Systems

• 45,711 W cooling / 14,378 W input → COP 3.18 (Te 7.2 / Tc 54.4, SH 11.1 K, SC 8.3 K).
• Parallel (tandem) design: It can operate on its own and can also be used in multiple compressor banks; it provides stepped capacity control and increases efficiency at part load.
• R407C compatible: The standard refrigerant for systems converted from R22 — a direct solution for modernizing old R22 installations.
• Scroll advantage: Few moving parts, low vibration; a sound level of 76 dB is low for this capacity class.
• High-efficiency motor: 2,950 rpm rated speed, 380-415 V three-phase supply.

Technical Specifications and Installation Notes

• Model: Panasonic LCC260RA04  |  Supply Code: 10.183.0049
• Type: Hermetic scroll, parallel (tandem compatible)  |  Refrigerant: R407C
• Power Class: 15 HP  |  Capacity: 45,711 W / ≈156,000 BTU/h (Te 7.2 / Tc 54.4)
• Power Input: 14,378 W  |  COP: 3.18
• Displacement: 260 cm³/rev  |  Speed: 2,950 rpm
• Power Supply: 380-415 V, 3 phase 50 Hz  |  Operating Current: 25.4 A
• Current Values: RLA 30.7 A  |  MCC 43 A  |  LRA (locked rotor) 167 A
• Oil: FV68S (ester), 3.5 L  |  Weight: 78 kg  |  Noise: max. 76 dB

• 🔧 Check the phase sequence. A scroll compresses in one direction only; in reverse rotation no pressure builds up and noise increases — swap two phases. Since the LRA is 167 A, select the contactor and circuit breaker accordingly.
• R407C is a zeotropic blend: Always charge in the liquid phase; charging in the vapor phase alters the blend ratio and capacity drops. After a leak, recovering and recharging is preferred over topping up.
• Ester oil absorbs moisture: Open the compressor immediately before installation and dry the system with a deep vacuum (≤500 micron); since the 3.5 L oil capacity is large, the dehydration time should be kept long.
• In tandem installation, connect the oil equalization line according to the manufacturer's diagram; a level difference damages the bearings.
• Use a crankcase heater at low ambient temperatures — liquid refrigerant mixing with the oil at cold start shortens bearing life.

Manufacturer Technical Data

• Cooling Capacity: 45,711 W = 156,000 BTU/h
• Power Input: 14,378 W — COP: 3.18
• Nominal Current: 25.37 A — MCC: 43 A
• Displacement: 260 cm³/rev
• Oil Quantity: 3.50 L
• Net Weight: 78 kg
• Sound Level: 76 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R407C

The values are taken from the manufacturer's technical report; test conditions: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
