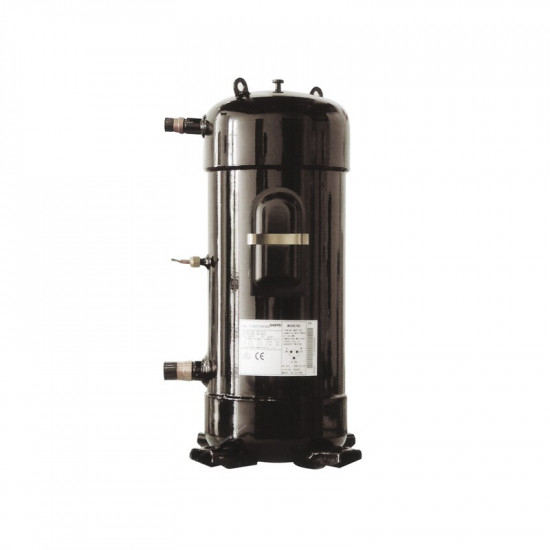

Panasonic C-SCP435H38B Scroll Compressor without Valves – 13 HP / 126,900 BTU, R410A

Panasonic Scroll Compressor C-Scp435H38B 13Hp

General Specifications:

• Compressor Power: 13 HP
• Refrigerant: R410A
• Application Type: HBP (High Back Pressure) +7.2℃ / +54.4℃.
• Power Supply: 380-440V, 50-60Hz.

Product Description:

The Panasonic Scroll Compressor C-Scp435H38B is a 13 HP scroll compressor model operating with R410A refrigerant. Offering high efficiency and durability, it is generally preferred in large commercial and industrial refrigeration projects.

Applications:

This 13 HP Panasonic Scroll Compressor is used especially in places such as large-scale commercial buildings, industrial facilities, cold storage warehouses and shopping malls. It is designed to meet high cooling capacity requirements and offers effective cooling performance over a wide temperature range.

Manufacturer Technical Data

• Cooling Capacity: 37,187 W = 126,900 BTU/h
• Power Input: 11,800 W — COP: 3.15
• Rated Current: 21.00 A — MCC: 30 A
• Displacement: 148.8 cm³/rev
• Oil Charge: 2.80 L
• Net Weight: 72.4 kg
• Sound Level: 72 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R410A

Values are taken from the manufacturer's technical report; test conditions: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
