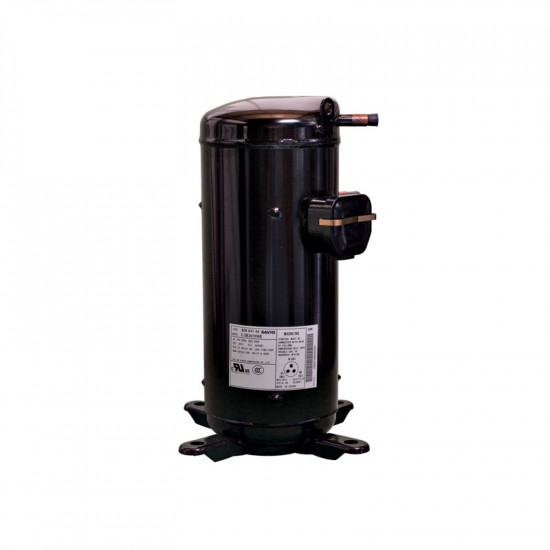

Panasonic C-SBN453H8G Valveless Scroll Compressor – 6 HP / 60,100 BTU, R134A-R404A-R407C

The Panasonic Scroll Compressor C-SBN453H8G is a 6 HP model compatible with R134A, R404A and R407C refrigerants. This compressor is designed for both High Back Pressure (HBP) and Medium Back Pressure (MBP) applications and offers a wide range of use in commercial and industrial refrigeration systems.

Product Features

• Compressor Power: 6 HP
• Refrigerant: R134A, R404A, R407C
• Application Type:
  • HBP (High Back Pressure): +7.2℃ / +54.4℃
  • MBP (Medium Back Pressure): -10℃ / +45℃
• Power Supply: 380-440V, 50-60Hz

With its 380-440V and 50-60Hz power supply, the Panasonic C-SBN453H8G easily adapts to the electrical standards of different countries. Thanks to its 6 HP performance, this model offers an effective solution in high-capacity refrigeration systems. It is ideal for both industrial and commercial refrigeration systems and air conditioning applications.

Applications

The Panasonic Scroll C-SBN453H8G is widely preferred in commercial and industrial refrigeration systems, air conditioning systems and similar applications. Its compatibility with R134A, R404A and R407C allows it to be easily integrated into different refrigeration systems and makes this compressor a flexible option.

Why Panasonic C-SBN453H8G?

• 6 HP, high-capacity cooling solution
• Compatibility with R134A, R404A and R407C refrigerants
• Wide temperature range in HBP and MBP applications
• Compatible with global electrical standards (380-440V, 50-60Hz)
• Panasonic's reliable engineering quality

Visit yedepa.com for the Panasonic C-SBN453H8G and other high-performance compressor solutions and discover the most suitable solutions for your refrigeration system.

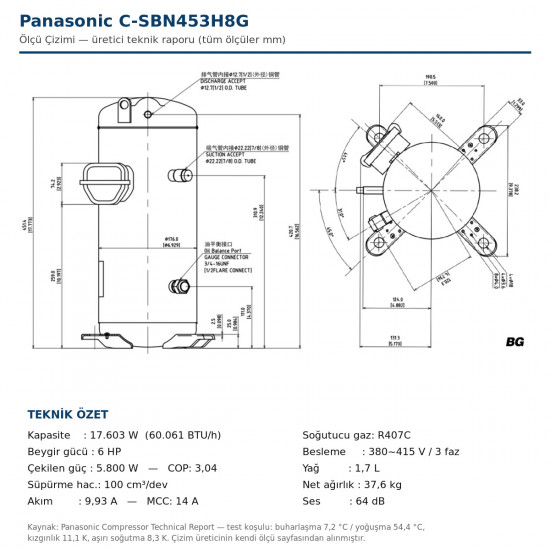

Manufacturer Technical Data

• Cooling Capacity: 17,603 W = 60,100 BTU/h
• Power Input: 5,800 W — COP: 3.04
• Rated Current: 9.93 A — MCC: 14 A
• Displacement: 100 cm³/rev
• Oil Charge: 1.70 L
• Net Weight: 37.6 kg
• Sound Level: 64 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R407C

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
