Konor GQR14KG Hermetic Compressor – 1/2+ HP, R404A, 2,196 W / 7,493 BTU/h

Konor GQR14KG is a 1/2+ HP hermetic reciprocating refrigeration compressor operating with R404A refrigerant. Under ASHRAE conditions it delivers a cooling capacity of 2,196 W (7,493 BTU/h). It is made for light commercial refrigeration applications such as commercial refrigerators, display cabinets and merchandising counters.

Light Commercial Hermetic Reciprocating Compressor

The compressor is fan cooled and operates in circuits throttled by a capillary tube. Its evaporating temperature range is 0 … +7.2 °C — which makes it suitable for positive (HBP/MBP) applications, i.e. for cooler cabinets, not freezers.

Under what conditions was the capacity measured? The 2,196 W value above was measured under the manufacturer's ASHRAE test conditions: evaporating +7.2 °C, condensing +54.4 °C, suction gas 35 °C, ambient 35 °C. The same compressor delivers noticeably less capacity at lower evaporating temperatures — so the HP value alone is not a basis for comparison; look at the W and BTU values.

Technical Specifications (Official Manufacturer Datasheet)

• Model: Konor GQR14KG · manufacturer Zhejiang Maidi Refrigeration
• Type: hermetic, reciprocating · fan cooled · capillary tube controlled
• Refrigerant: R404A
• Power: 1/2+ HP · displacement 14.32 cm³
• Cooling capacity: 2,196 W = 7,493 BTU/h (+7.2 °C / +54.4 °C)
• Power input: 1,028 W · COP 2.14 W/W
• Rated current: 5.12 A
• Power supply: 1 phase 220–240 V · 50 Hz (operating range 187–242 V)
• Motor type: CSR · start capacitor 80 µF · run capacitor 16 µF
• Oil: POE (ester) 32# · charge 400 ml
• Tube inside diameter: suction / discharge / process Ø8.1 mm

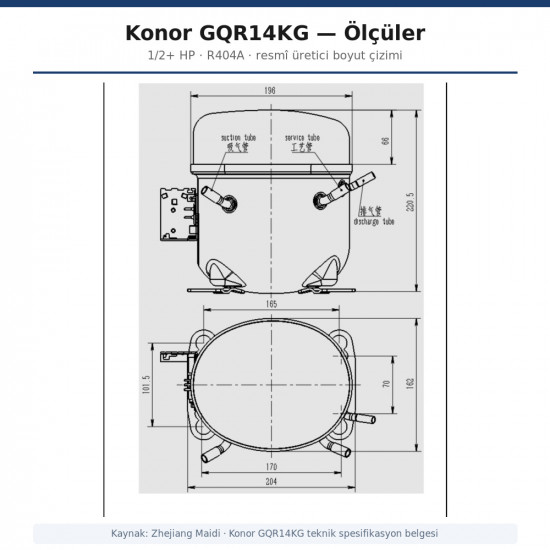

• Height: 220 mm · net weight 13.7 kg
• Overload protection: trip 140 ± 5 °C · reset 61 ± 9 °C · trip time 7–14 s
• Body: black, oven-baked paint · Certificate: CCC

• ⚠️ The run (permanent) capacitor is not included in the box. This model has a CSR motor; it needs a 16 µF run capacitor to operate. The manufacturer's accessory list includes the start capacitor (80 µF) but not the run capacitor — it must be obtained separately: 16 µF run capacitor.
• Box contents: compressor, overload protector, starting relay, start capacitor, motor terminal cover and clip, 4 vibration mounts, 4 mounting sleeves.
• 🔧 Installation: The compressor operates upright; do not mount it without the vibration mounts. When brazing the tubes, wrap the body in a wet cloth; excessive heat damages the winding insulation.
• 🔧 Oil compatibility: POE oil absorbs moisture. Keep the compressor's suction plug closed until the moment of installation; the oil of a compressor left open absorbs moisture and acid forms in the circuit.
• ⚠️ Refrigerant compatibility: This model is for R404A. If fitted to an R134a system, capacity and oil return are impaired.
• Before commissioning, evacuate the system; a compressor is not replaced without renewing the capillary tube and filter drier.

Technical document: Konor GQR14KG manufacturer technical specification (PDF)
