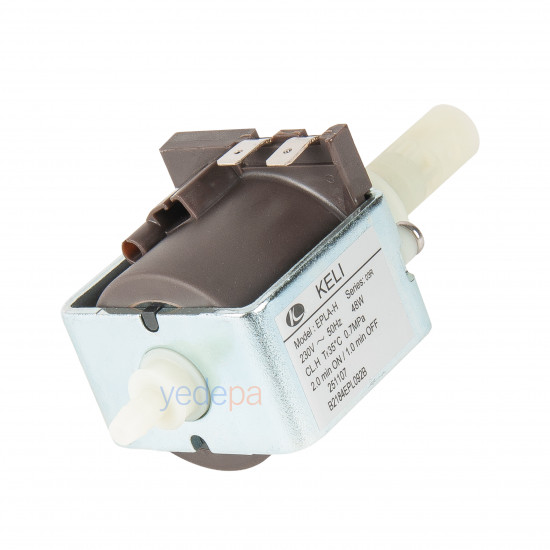

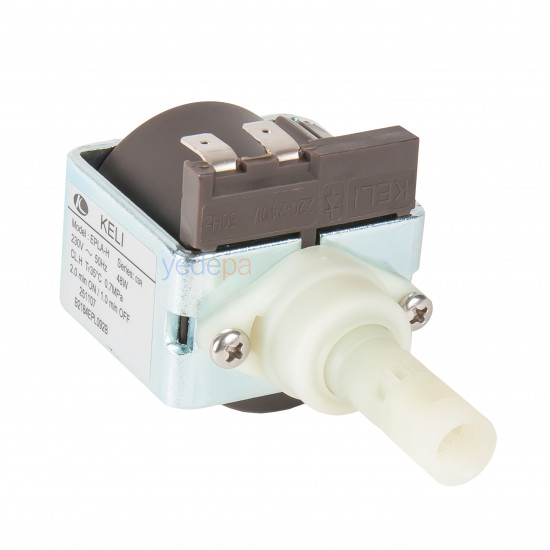

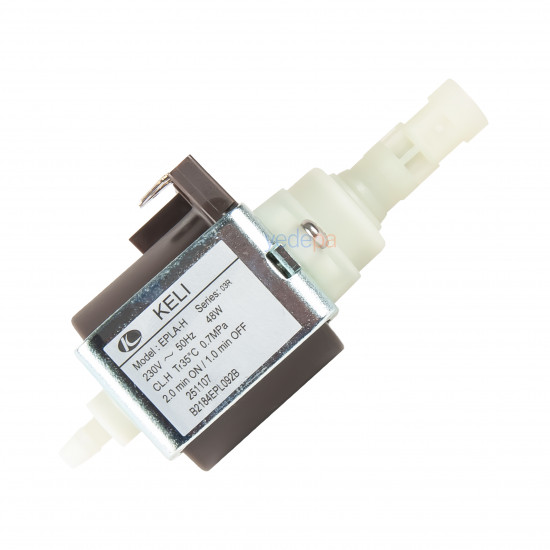

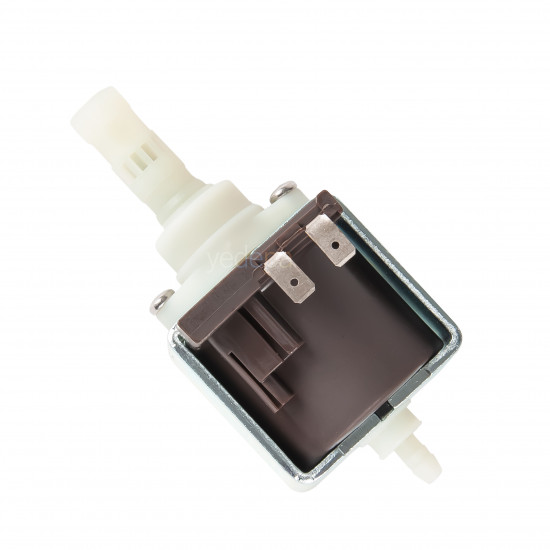

KELI EPLA-H 230V 48W Solenoid Water Pump (ULKA EP7 Equivalent)

This is an electromagnetic vibratory water pump with high delivery capacity that service technicians can rely on when repairing coffee machines, espresso machines, steam cleaners and small household appliances. Designed as a direct equivalent of the ULKA EP7 model, which is considered the industry standard, it meets the same pressure and flow values, allowing fast, compatible and economical repairs in the field.

Key Technical Specifications and Label Values

• Brand and Model: KELI / EPLA-H (Series: 03R)
• Operating Voltage and Power: 230V ~ 50Hz / 48W (Fully compatible with mains voltage, powerful coil design)
• Pressure Capacity: With a maximum delivery pressure of 0.7 MPa (approx. 7 Bar), it delivers liquid flow at the pressure the system requires.
• Duty Cycle: 2.0 min ON / 1.0 min OFF (Designed for a 1-minute rest period after 2 minutes of continuous operation to protect the coil.)
• Insulation Class: CL.H (Winding insulation resistant to high temperatures)
• Liquid Temperature Limit: The maximum temperature of the transferred water/liquid must be Tf 35°C.

Technician Tips and Installation Warnings in the Field

• This pump has the same mechanical and electrical design as the ULKA EP7. When you remove the old faulty pump, do not throw away the plastic rubber mounts (vibration absorbers) on it; transfer them to the new KELI pump to complete the installation. This ensures quiet operation of the appliance.
• It has standard female faston (spade) terminal connections. Fit the connectors following the wiring of the old pump (according to the diode marking on it, if any).
• Always clean the scale filter or strainer in the appliance's water inlet reservoir. Trying to draw water from a clogged line can cause the pump to overheat and run outside its duty cycle, burning out the coil (or tripping the thermal cut-out).
• On first start-up, the pump may sound somewhat loud until the air in the system is purged; it will return to its normal operating sound once it starts pumping water. Never run the pump dry for long periods.
