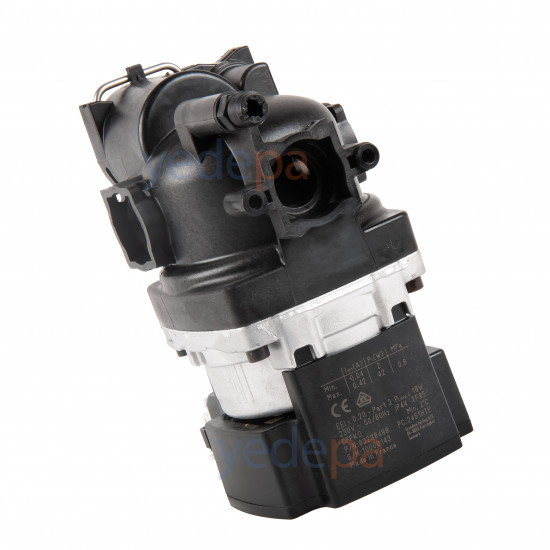

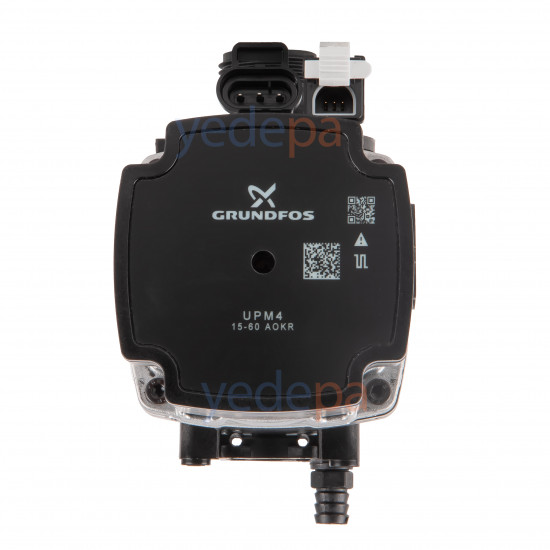

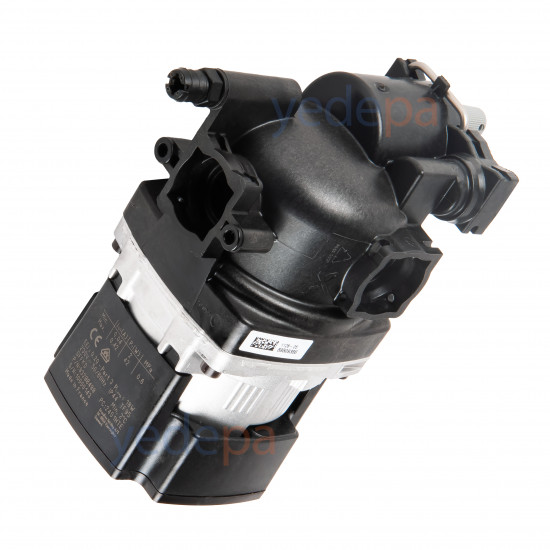

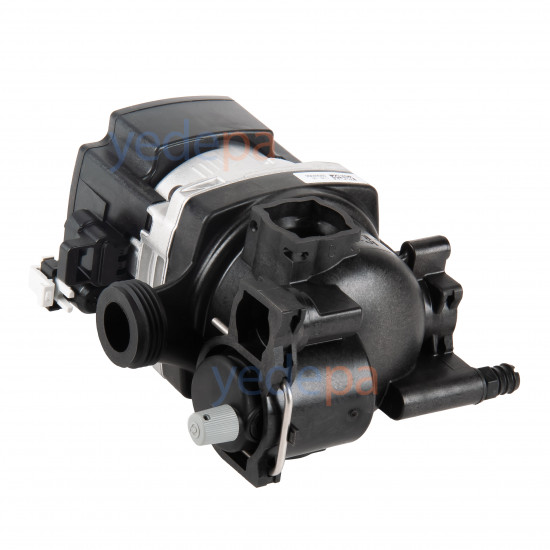

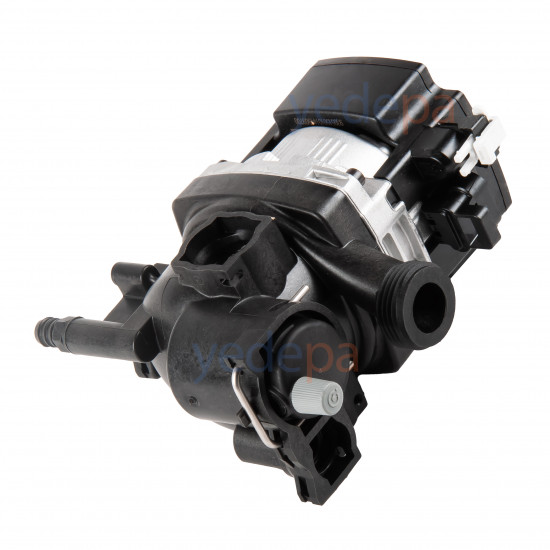

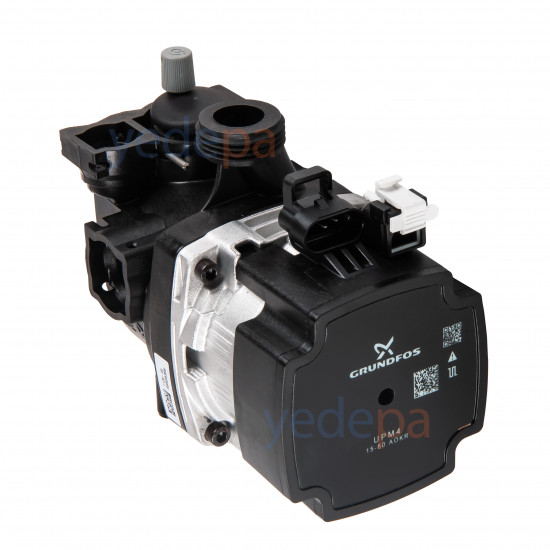

Grundfos UPM4 15-60 AOKR Frequency-Controlled Combi Boiler Circulation Pump - 230V, 18W, IP44, TF95

High-Efficiency and Durable Circulation Pump

Grundfos UPM4 15-60 AOKR is a high-efficiency circulation pump used in combi boiler and heating systems. While its frequency-controlled design saves energy, its 230V operating voltage, 18W maximum power consumption and IP44 protection class provide safe and durable use.

Key Features

• Frequency-Controlled Operation: Optimizes energy consumption thanks to variable speed control.
• Low Power Consumption: Provides high efficiency with a maximum 18W power consumption.
• High Protection Class: IP44 rating makes it resistant to water and dust.
• Wide Pressure Range: Offers an operating pressure of 0.04 MPa - 0.42 MPa.
• 230V Operating Voltage: Compatible with the standard mains supply.
• Minimum Operating Temperature: 2°C for reliable performance at low temperatures.
• Energy Efficiency Index (EEI): ≤ 0.20 for energy savings.
• Insulation Class: TF95, resistant to high temperatures.
• Country of Manufacture: France

Applications

The Grundfos UPM4 15-60 AOKR is a pump that handles circulation in combi boiler and central heating systems. Thanks to its low power consumption and quiet operation, it is a long-lasting and efficient solution.

Technical Specifications

Brand: Grundfos

Model: UPM4 15-60 AOKR

Operating Voltage: 230V - 50/60Hz

Power Consumption: ≤ 18W

Protection Class: IP44

Operating Pressure: 0.04 - 0.42 MPa

Minimum Operating Temperature: 2°C

Energy Efficiency Index (EEI): ≤ 0.20

Insulation Class: TF95

Country of Manufacture: France

Part Number (P/N): 93298498

Serial Number (S/N): 10000143

Product Code (PC): 2451HTE

Reliable Performance with Grundfos Quality

Produced with Grundfos's innovative engineering approach, the UPM4 15-60 AOKR stands out among combi boiler circulation pumps for its high efficiency and durability. With its quiet and energy-saving operation, it is an ideal choice for professionals.
