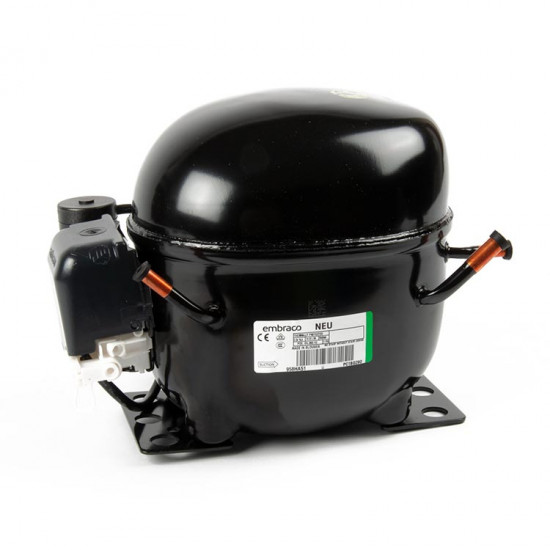

Embraco NEU 2170 UA Refrigerator Compressor – R290 Propane, LBP, 820 W, 16.8 cm³ | 220-240V

Embraco NEU 2170 UA is a hermetic reciprocating compressor operating with R290 (propane) refrigerant. It belongs to the LBP (Low Back Pressure) class: it is designed for freezers, low temperature cabinets and deep-freeze applications. It is made in Slovakia.

R290 Propane Low Temperature (LBP) Compressor

R290 is a natural refrigerant with a GWP of 3; it is a future-proof solution compared with the HFC refrigerants restricted by F-gas regulations. Because it delivers the same capacity with a smaller displacement, the compressor is smaller and energy consumption is lower. The NEU 2170 UA is the improved model that replaces its predecessor, the NEU 2168 U (788 W), offering 820 W capacity in the same body.

Technical Specifications

• Brand / Model: Embraco NEU 2170 UA
• Refrigerant: R290 (propane) — natural refrigerant, GWP 3
• Operating Range: LBP (low back pressure — freezer / deep freeze)
• Cooling Capacity: 820 W (evaporating −23.3 °C / condensing +54.4 °C)
• Displacement: 16.8 cm³
• Power Supply: 220-240 V / 1~ / 50 Hz (single-phase)
• Type: Hermetic reciprocating
• Country of Manufacture: Slovakia

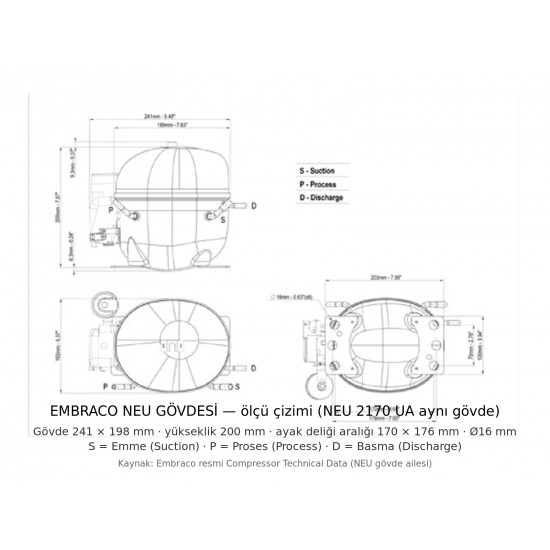

• Body Dimensions: 241 × 198 mm · height 200 mm | Mounting: 170 × 176 mm foot hole spacing (Ø16 mm) — official dimensional drawing in the 2nd image (S: suction · P: process · D: discharge)
• Predecessor Model: NEU 2168 U (788 W) — this model is its improved version

• 🚨 R290 is a flammable gas (A3 class): Installation, charging and service must be carried out by a technician trained in hydrocarbon refrigerants, with spark-free equipment and in a ventilated area. Observe charge limits and room volume rules.
• Electrical components: In R290 systems the relay, overload protector and terminal box must be of the hydrocarbon-compatible (spark-protected) type — standard R134a accessories cannot be used as direct replacements.
• 🔧 When replacing the compressor, always renew the filter drier and use R290-compatible POE oil in the system.
• Capacity comparison: In R290 compressors the same capacity is achieved with a smaller displacement; a direct cm³ comparison with an R134a model is misleading — select based on capacity (W).
