Eliwell EWRC 500 LX Cold Room Controller – 230V, 3 Probe Inputs, 5 Relay Outputs Digital Thermostat

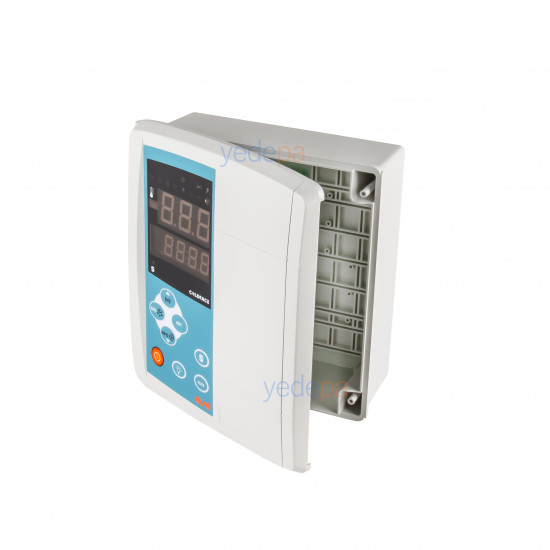

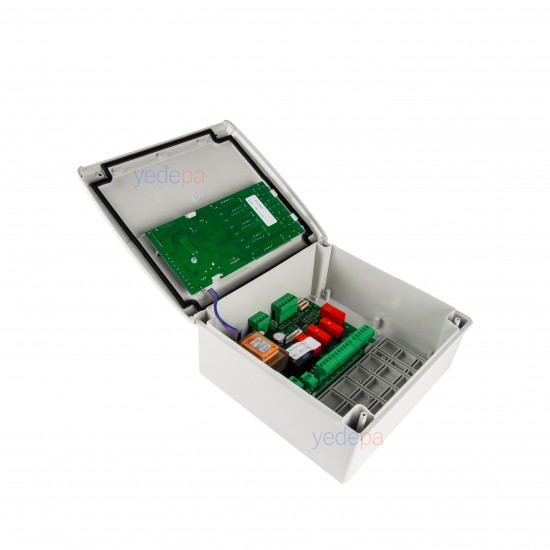

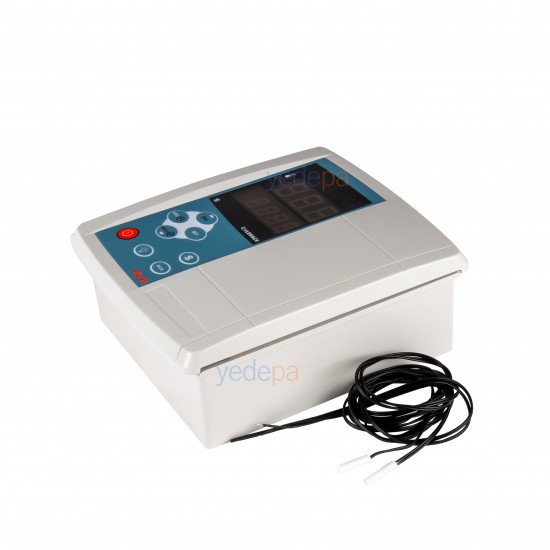

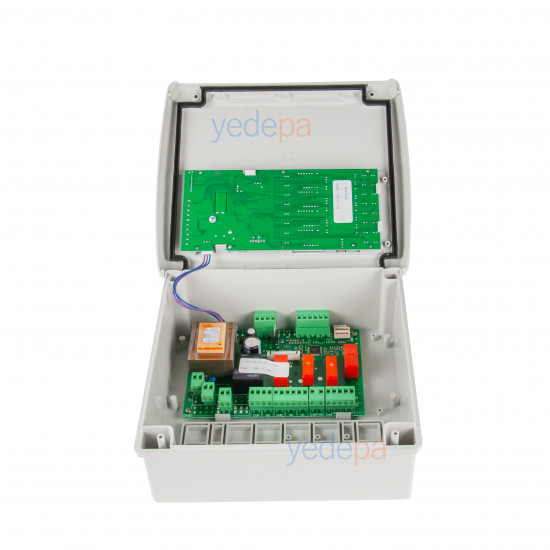

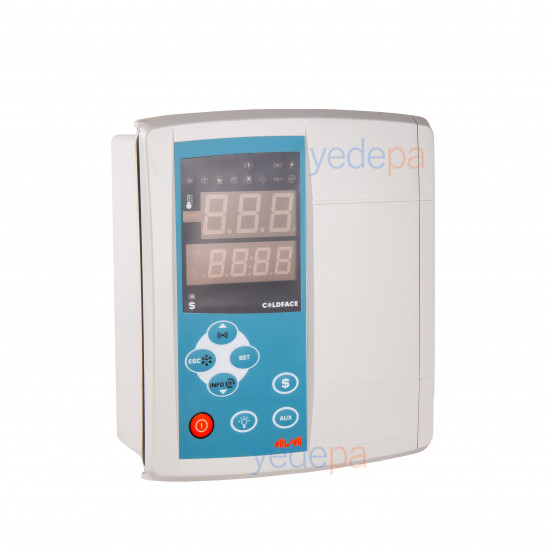

The Eliwell EWRC 500 LX is a multi-function controller from the COLDFACE family that brings all control of cold rooms and refrigerated cabinets together in a single panel. It independently manages the compressor, defrost, evaporator and condenser fans, lighting and auxiliary relay outputs; it includes operating functions such as HACCP alarm logs, night-day (energy saving) mode and a deep cooling cycle. It comes in a ready-made IP65 panel enclosure, so there is no need to fit a separate control board inside the panel.

Compressor, Defrost, Fan, Light and Alarm Control in a Single Panel (COLDFACE Family)

• Brand / Model: Eliwell / EWRC 500 LX (COLDFACE family)
• Power Supply: 230 V~ ±10%, power consumption 8 VA
• Probe Inputs: 3 NTC inputs (Pb1 / Pb2 / Pb3 — configured with parameter H00)
• Display Range: -50 … +110 °C (NTC), resolution 1 or 0.1 °C, accuracy better than 0.5%
• Digital Inputs: 2 (for door contact, pressure switch, etc.)
• Relay Outputs (5, assignable by parameter): OUT1 SPST 2 Hp · OUT2 SPDT 1 Hp · OUT3 8(3) A SPST · OUT4 8(3) A SPDT · OUT5 1 Hp SPST — all 250 V~
• Communication: Copy card connection, TTL port for TelevisSystem, optional RS-485 serial port
• Protection / Enclosure: IP65, Babyblend FR 110 material
• Dimensions: Front 210 × 245 mm, depth 90 mm · Mounting dimensions 202 × 212 mm, depth 70 mm
• Operating / Storage Environment: -5 … +55 °C operating, -20 … +85 °C storage, 10-90% RH (non-condensing)

EWRC 500 LX Technical Specifications, Terminal Connections and Installation Warnings

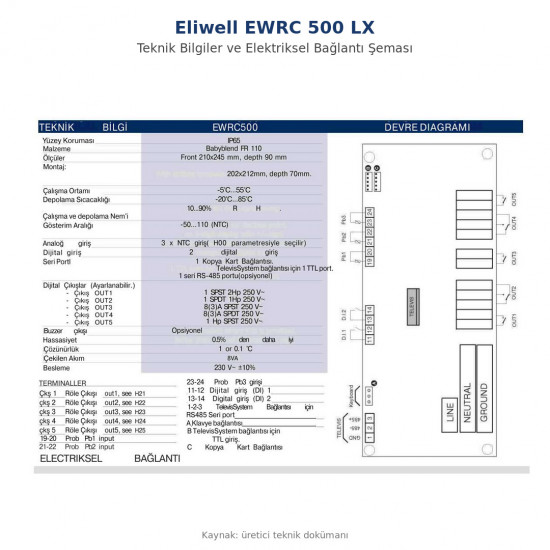

• Terminal layout: 19-20 Pb1 probe · 21-22 Pb2 probe · 23-24 Pb3 probe · 11-12 digital input DI1 · 13-14 digital input DI2 · 1-2-3 RS-485 (TelevisSystem) · A keyboard · B TTL · C copy card. Relay outputs OUT1-OUT5 are assigned to functions with parameters H21…H25. The complete wiring diagram is shown in the technical image in the product gallery.
• Output loads must be checked: If the compressor is to be connected directly, the running and starting current of the motor must not exceed the Hp/A rating of the relevant relay; for higher loads, a suitable contactor is placed in between. High current drawn directly through the relay is the most common cause of contact welding.
• Probe placement determines the quality of the job: Place the room probe (Pb1) on the air return side and the evaporator probe (Pb2) between the fins so that it correctly detects the end of defrost; do not place the probe near the door, lighting or in direct airflow.
• The parameter menu has two levels: user (USEr) and installer (InSt). Compressor protection delays, defrost interval/duration and fan management are at installer level; after commissioning, you can back up the settings with the copy card and transfer them to panels of the same type.
• HACCP logs: The device stores power failure and temperature alarms with date and time; this is a practical advantage for businesses that are required to keep records for food safety inspections. When commissioning the RTC (real-time clock), make sure the time/date is set correctly.
• Although the panel is IP65, it should not be exposed to direct water spray, condensate dripping or aggressive environments containing ammonia/chlorine.
