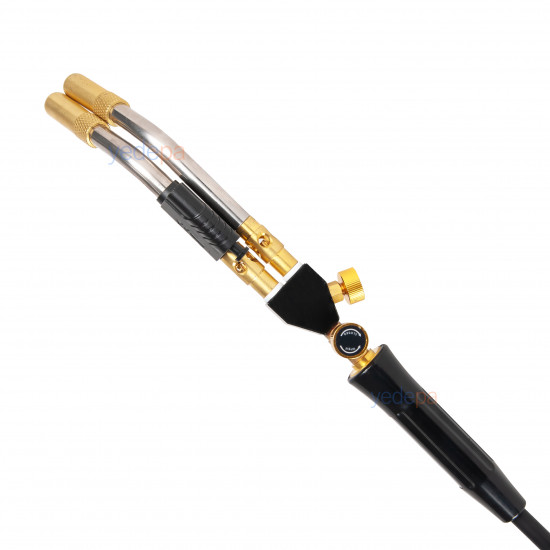

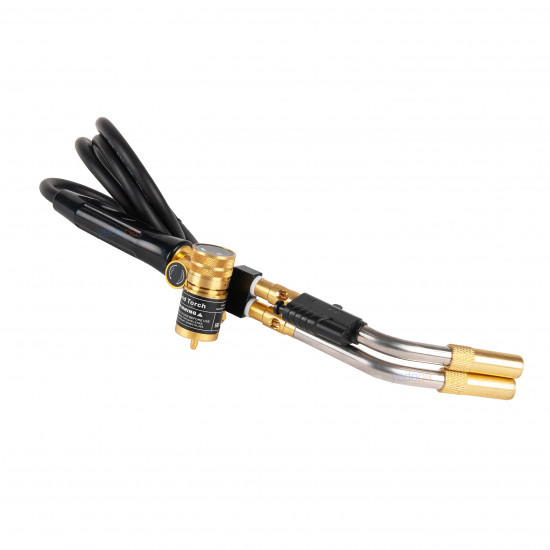

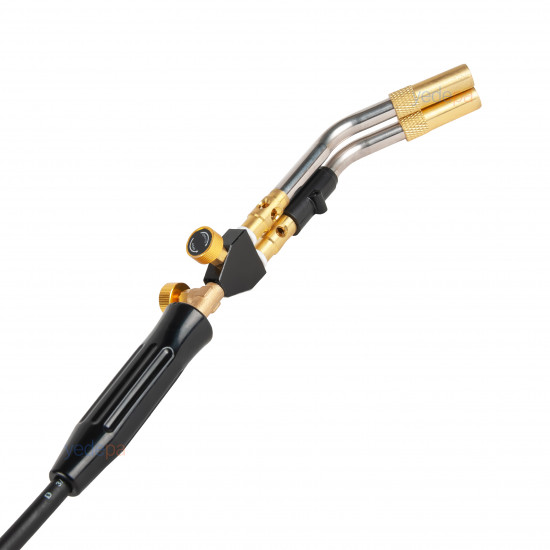

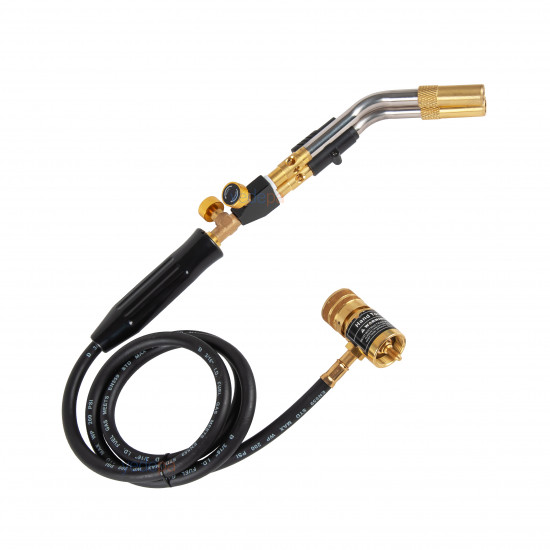

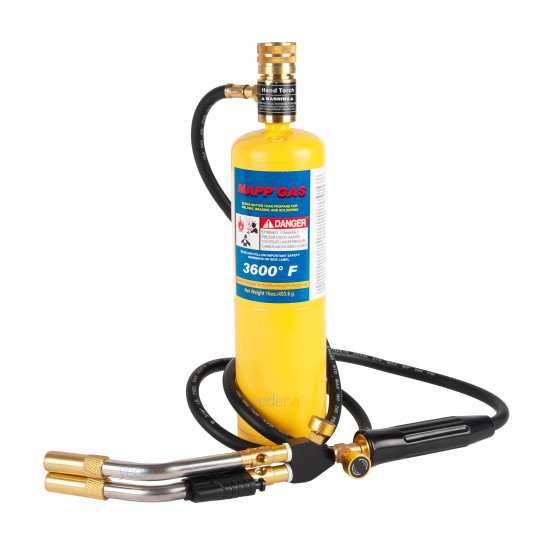

Dual-Head Hose-Type MAPP / Propane Gas Torch and MAPP Gas Cartridge Set

The Dual-Head (Double Burner) Hose-Type MAPP/Propane Gas Torch and Gas Cartridge Set, which saves time when brazing large-diameter copper tubes or during intensive soldering work in the field, is specially designed for HVAC and plumbing technicians. Thanks to its dual flame outlet, it heats the tube evenly all around and twice as fast as standard models. The 150 cm extension hose eliminates the need to hold the heavy gas cylinder in your hand, giving you maximum freedom of movement when brazing in tight spaces, in attics or in shafts.

Dual-Head Hose-Type Torch Features

• Dual Tip Design: Two high-performance brass burner tips provide a wider heating area. It offers high efficiency when brazing thick copper tubes (for example in VRF systems).
• Industrial Extension Hose: 150 cm long flexible rubber hose with a 3/16" I.D. inside diameter, compliant with EN559 standards. Rated for a maximum working pressure of 200 PSI (MAX WP).
• Precise Flame Control and Valve: Get exactly the flame size you need with the "Open/Closed" brass-body control valve that lets you finely adjust the gas flow.
• Standard Connection (CGA600): Brass cylinder connector with a 1"-20 UNEF thread, compatible with American standard cylinders.
• Ergonomic Use: Thanks to its electronic (piezo) igniter and ergonomic black handle that fits the hand, it offers comfortable and safe use even with work gloves.

MAPP Gas Cartridge Technical Values

• High Heat Performance: Offers much higher combustion efficiency than conventional propane, reaching heat values of 3600°F (1980°C). Suitable for brazing and anaerobic combustion.
• Capacity and Duration: 16 oz. / 453.6 g net gas weight (890 g gross) with an average of 2 hours 40 minutes of continuous, stable burning time.
• Applications: Air conditioning (AC/refrigeration) installations, copper/aluminum tube brazing, heat treatment in installations, and soft soldering/brazing applications.

Technician-Friendly Field Advantage

When working with conventional cylinder-mounted torches, holding the cylinder upside down or at tight angles all the time can cause flame fluctuations or the gas to arrive as liquid and blow out the flame. Thanks to the hose-type handle design, the gas cylinder stands upright and safely on the floor while you focus on brazing with only the light, ergonomic handle. With the fast heating provided by the dual head, you can easily heat the back of the tube as well and obtain a flawless silver brazed joint.
