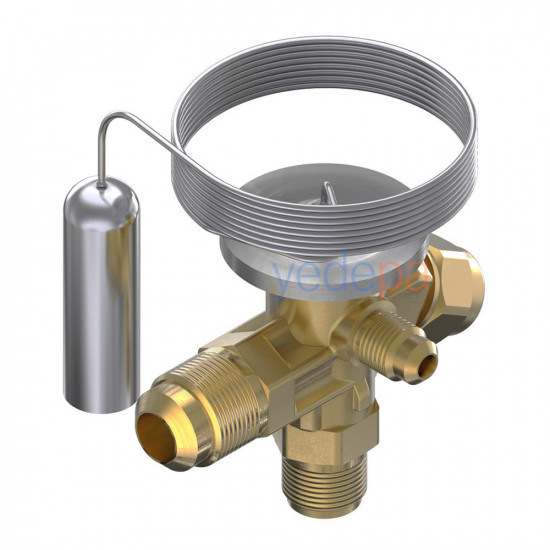

Danfoss TE 2 Thermostatic Expansion Valve - R404A / R507A, Externally Equalized, -40°C, 3/8" x 1/2" Flare - Part No: 068Z3409
Danfoss TE 2 Thermostatic Expansion Valve - R404A / R507A, Externally Equalized, -40°C, 3/8" x 1/2" Flare - Part No: 068Z3409

Danfoss TE 2 Thermostatic Expansion Valve - R404A / R507A, Externally Equalized, -40°C, 3/8" x 1/2" Flare - Part No: 068Z3409

  • Stock: In Stock
  • Brand: Danfoss
  • Model: 18.10.180
$72.06 (VAT incl.)
Ex Tax: $60.05
Fast Dispatch
Shipped from Türkiye by international express courier (see delivery page)
Secure Shopping
Your card details cannot be seen by anyone, including our staff.
Shipping
Your discounted shipping rate is calculated in the cart.

Product Description

The Danfoss TE 2 thermostatic expansion valve is an externally equalized, MOP-controlled expansion valve designed for R404A and R507A refrigerants. It is developed for use at evaporating temperatures between -40°C and -15°C and has an MOP point of -10°C. Thanks to its 3/8" inlet and 1/2" outlet flare connections, it is easy to install. It is supplied with a 1500 mm long capillary tube and a sensor strap.

Technical Specifications

  • Brand: Danfoss
  • Model: TE 2
  • Part Number: 068Z3409
  • EAN: 5702422125884
  • Refrigerants: R404A, R507A
  • Connection Type: Flare, 3/8" inlet – 1/2" outlet
  • Equalization Type: External Equalization (1/4" flare)
  • Operating Temperature Range: -40°C to -15°C
  • MOP Point: -10°C (MOP 50 psig / 14°F)
  • Superheat Setting: Adjustable
  • Static Superheat: 4 °C (7.2 °F)
  • Capillary Tube Length: 1500 mm (59 inch)
  • Flow Direction: One-way (with the arrow on the body)
  • Body Material: Brass
  • Maximum Working Pressure: 34 bar (500 psig)
  • Service Status: Serviceable (spare parts available)
  • Accessories: Sensor strap included

Nominal Capacity (At Standard Conditions)

  • SI: OS = 6K, Tcond = 38°C, Tevap = 4.4°C, Tliq = 37°C
  • Imperial: OS = 10.8°F, Tcond = 100°F, Tevap = 40°F, Tliq = 98°F

Certificates and Conformity

  • Approvals: EAC, LLC CDC TYSK
  • CE Conformity: Yes
  • PED Category: Article 4, Paragraph 3
  • EU RoHS Compliance: Yes (exemption: 6(a), 6(c))
  • China RoHS: Exceeds limit
  • SCIP Dossier No: c164ed45-f10d-4d73-9eae-355ccb479f4b
