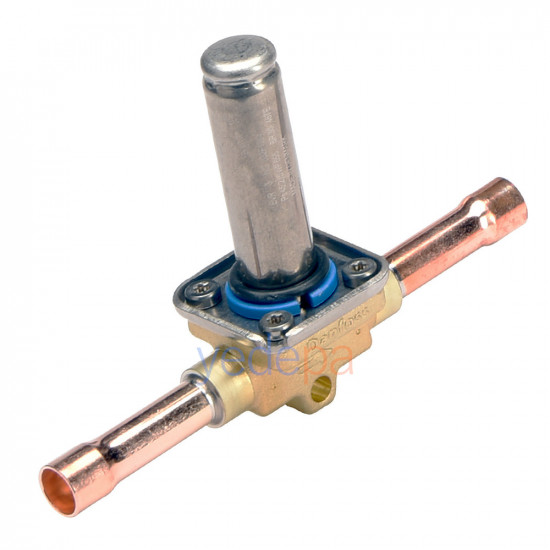

Danfoss EVR 3 Solenoid Valve - NC, Solder ODF, 3/8 in - Brass Body - Part No: 032F1204

Product Description

The Danfoss EVR 3 solenoid valve is a direct-operated, normally closed (NC) valve model with 3/8 inch solder (ODF) connection ends. Thanks to its brass body and compact design, it is resistant to high pressure and temperature. It is suitable for refrigeration systems and industrial applications. This valve stands out with its wide refrigerant compatibility and IP67 protection class.

Technical Specifications

• Brand: Danfoss
• Model: EVR 3
• Part Number: 032F1204
• EAN: 5702422004189
• Valve Type: Solenoid Valve (Normally Closed - NC)
• Operating Principle: Direct
• Connection Type: Solder, ODF
• Connection Size: 3/8 inch (Inlet and Outlet)
• Body Material: Brass
• Kv Value: 0.27 m³/h
• Cv Value: 0.31 gal/min
• Orifice Diameter: 3.3 mm
• Maximum Working Pressure: 45.2 bar (PED compliant: 49 bar)
• MOPD (10W AC): 38 bar
• Operating Temperature Range (Ambient): -40°C to +80°C
• Operating Temperature Range (Medium): -40°C to +105°C
• Defrost Maximum: 130°C
• Actuator Size: 13.5 mm
• Manual Operation: None
• Service Status: Spare parts available

Compatible Refrigerants

The EVR 3 valve is compatible with the following UL-approved and general refrigerants:

• R134a, R404A, R410A, R407C, R407F, R407H, R507A, R22, R32, R1234ze(E), R125
• R290, R600, R600a, R152a, R448A, R449A, R452A, R452B, R454B, R515A, R515B, R513A, R513B
• R442A, R447B, R449B, R450A, R463A, R417A, R422A, R422B, R422D, R438A

Certificates and Conformity

• Approvals: EAC, LLC CDC TYSK
• CE Assessment: Yes
• PED Category: Article 4, paragraph 3
• EU RoHS Compliance: Yes, exemptions: 6(a), 6(c)
• China RoHS: Above limits
• SCIP No: 52f475eb-6026-442a-932e-863e4660eac8
