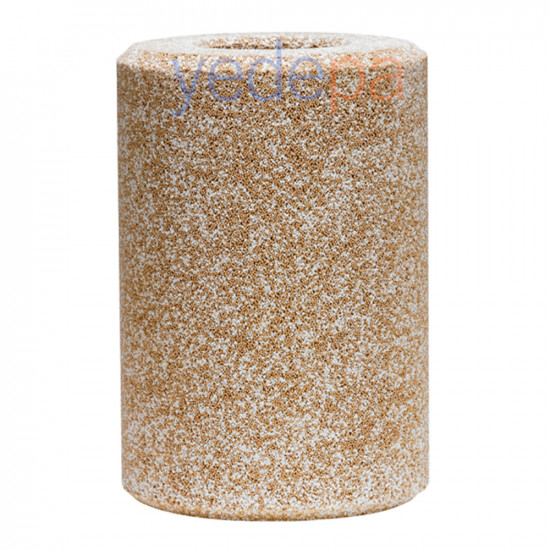

Danfoss 48-DA 023U5380 Filter Drier Cartridge - Compressor Burnout and Acid Removal

Powerful Acid and Moisture Removal Capacity

The Danfoss 48-DA 023U5380 filter drier cartridge helps protect the refrigeration circuit by providing high acid removal, especially in systems after a compressor burnout. Part of the ELIMINATOR series, this model has a powerful filtration capacity with its 70% activated alumina and 30% molecular sieve content.

Key Features

• High acid removal capacity (24.85 g)
• Filter structure containing 70% activated alumina and 30% molecular sieve
• Effective system cleanup after compressor burnouts
• Long-lasting use with a robust core design
• Wide refrigerant compatibility
• Suitable for oil-free applications
• Gaskets and felt seals included in the package

Technical Data

• Product Type: DA (48-DA)
• Core Size: 48 cu.in.
• Gross Weight: 0.826 kg
• Net Weight: 0.673 kg
• Volume: 1.55 liters

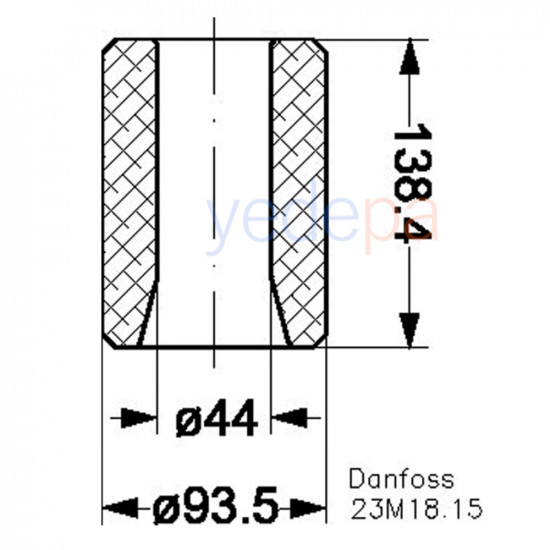

• Solid Core Surface Area: 612 cm²
• Solid Core Volume: 727 cm³
• Acid Capacity: 24.85 g (0.877 oz)
• Application: Acid removal after compressor burnout
• Package Contents:
  • 1 x Gasket (023U0743)
  • 2 x Felt Gasket (633L5312)

Compatible Refrigerants

The Danfoss 48-DA 023U5380 filter drier cartridge is compatible with the following refrigerants:

• R1234ze(E), R134a, R513A, R515A, R516A
• R22/R407C, R290, R401A, R402A
• R404A, R409A, R410A, R421A, R422D
• R502, R507A

Applications

The Danfoss 48-DA 023U5380 filter drier cartridge is designed especially for system cleanup and protection after a compressor burnout. By providing highly efficient moisture and acid removal in commercial and industrial refrigeration systems, it increases system reliability.
