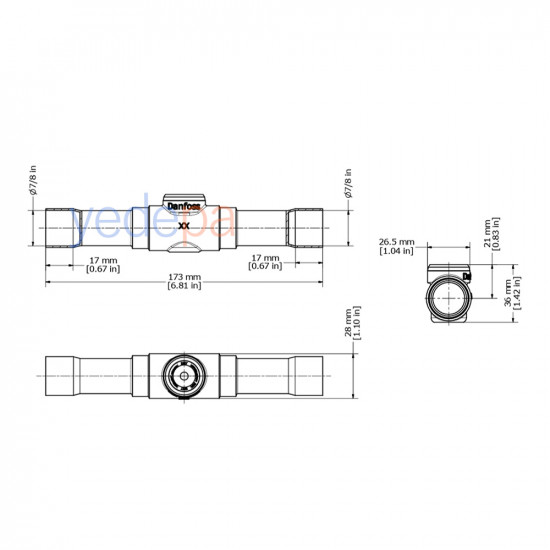

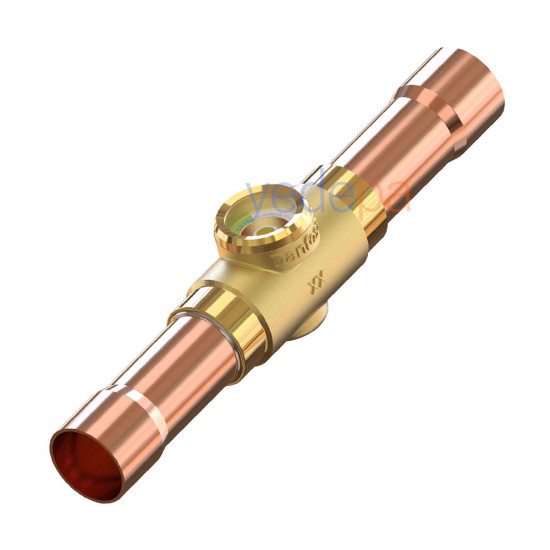

Danfoss 014-0186 SGN 22S Sight Glass 7/8" (22 mm) ODF, 35 bar

The Danfoss SGN 22S (014-0186) sight glass allows the refrigerant flow and the moisture level in the system to be checked visually in refrigeration and air conditioning systems. Thanks to its 22 mm (7/8 inch) ODF solder connection design, installation is easy. It includes a moisture indicator (N type indicator) and is compatible with oil-free refrigerants.

Specifications

• Product Code: 014-0186
• Type: SGN 22S
• Connection Type: Solder (ODF)
• Connection Size: 7/8 inch (22 mm)
• Moisture Indicator: N type colour indicator
• Body Material: Brass
• Connection Material: Copper
• Serviceability: No
• Operating Temperature Range: -50 °C to +80 °C
• Maximum Working Pressure: 35 bar (500 psi)
• Compatible Refrigerants: R1233zd(E), R1234yf, R1234ze(E), R134a, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R507A, R513A
• Oil Compatibility: Suitable for oil-free applications
• RoHS Compliance: EU RoHS and China RoHS compliant (with exemptions)

Moisture Indicator Colour Values

Green: Maximum moisture values (ppm):
R134a: 30 | R404A: 20 | R407F: 30 | R449A: 29 | R452A: 20

Yellow: Minimum moisture values (ppm):
R134a: 100 | R404A: 70 | R407F: 168 | R449A: 105 | R452A: 79

Physical Characteristics

• Gross Weight: 0.272 kg
• Net Weight: 0.249 kg
• Volume: 0.277 litres
• EAN: 5702422103998

Areas of Use

The Danfoss SGN 22S sight glass is used in commercial and industrial refrigeration systems to monitor the presence of refrigerant and the moisture level in the system. This component is preferred especially in systems requiring high efficiency and safety.
