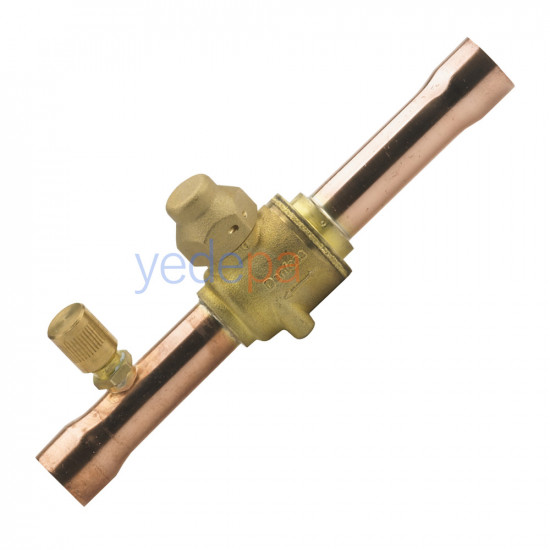

Danfoss 009L7053 GBC 16s Solder Ball Valve 5/8" - 16 mm ODF, 15.66 m³/h Kv, 45 bar

The Danfoss 009L7053 GBC 16s solder ball valve is a full-bore shut-off valve with low pressure loss used in commercial refrigeration, air conditioning and industrial refrigeration systems. Its 16 mm (5/8 inch) ODF solder connection allows reliable installation, and its Schrader valve allows easy servicing.

Features

• Bi-directional flow design.
• Easy service and maintenance with the Schrader valve.
• Safe, leak-tight installation with the solder connection (ODF) design.
• Durable, long-lasting use with its brass body.
• Prevents internal leaks thanks to special sealing materials.
• Holds UL, CE, EAC and UKCA certifications.
• M4 x 0.7 mm mounting points for panel mounting.

General Technical Specifications

• Product Code: 009L7053
• Connection Size: 16 mm (5/8 inch) ODF solder connection
• Kv Value: 15.66 m³/h
• Working Pressure: Max. 45 bar (650 psig)
• Operating Temperature: -40°C to +100°C
• Body Material: Brass
• Maintenance Option: Compatible with BM/GBC valve spare parts
• Suitable Refrigerants: R1234yf, R1234ze(E), R134a, R22, R290, R32, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R600a
• Certification: UL, CE, EAC, UKCA and China RoHS compliant

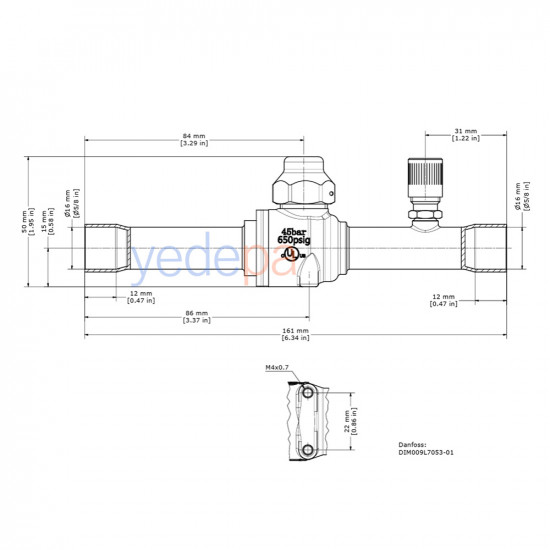

Dimensions and Weight

• Overall Length (L): 161 mm
• Body Length (L1): 84 mm
• Tube Length (L2): 86 mm
• Tube Diameter: 16 mm (5/8 inch)
• Mounting Hole Size: M4 x 0.7 (2 pcs)
• Gross Weight: 0.306 kg
• Net Weight: 0.244 kg

Applications

The Danfoss 009L7053 GBC 16s ball valve is ideal for refrigerant flow control in commercial and industrial refrigeration systems. Thanks to its high pressure resistance, leak-tight design and easy installation, it has a wide range of applications.
