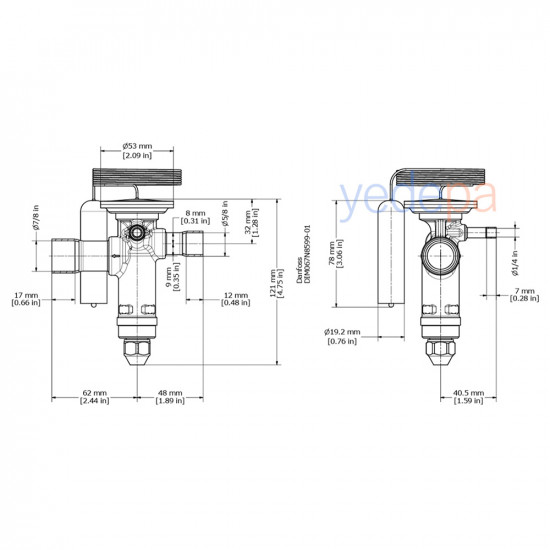

Danfoss TGE Thermostatic Expansion Valve - R407C, Externally Equalized, Balanced Port, 5/8" x 7/8" Solder, MOP 15°C - 42 kW - Part No: 067N4009
- Stock: In Stock
- Brand: Danfoss
- Model: 18.30.200
Product Description
Danfoss TGE 067N4009 is an externally equalized thermostatic expansion valve developed to provide efficient and balanced expansion control in systems with R407C refrigerant. With a cooling capacity of 42 kW (12 TR), it is suitable for medium-sized systems. Thanks to its balanced port design, it operates stably during sudden pressure fluctuations. With its 1500 mm capillary tube and 1/4 inch external equalization connection, it provides high system compatibility. The MOP 15°C feature helps protect the compressor against overload.
Technical Specifications
- Brand: Danfoss
- Model: TGE
- Part Number: 067N4009
- EAN: 5702428142014
- Refrigerant: R407C
- Connection Type: Solder (ODF) – Inlet: 5/8", Outlet: 7/8"
- Equalization Type: External Equalization (1/4" ODF)
- Port Design: Balanced port
- Orifice No: 12.5
- Orifice Capacity: 42 kW / 12 TR
- MOP Point: 15 °C (MOP 95 psig)
- Operating Temperature Range: -25 °C to +10 °C
- Superheat Setting: Adjustable
- Static Superheat: 4 °C (7.2 °F)
- Capillary Tube Length: 1500 mm (59 inch)
- Flow Direction: Bi-flow
- Body Material: Brass
- Connection Material: Copper
- Element Temperature Limit: 110 °C (230 °F)
- Maximum Working Pressure: 49 bar (711 psig)
- Service Status: Not serviceable
- Accessories: Sensor strap included
Nominal Capacity (At Standard Conditions)
- SI Conditions: tcond = 38 °C, tevap = 4.4 °C, tliq = 37 °C
- Imperial Conditions: tcond = 100 °F, tevap = 40 °F, tliq = 98 °F
Conformity and Certificates
- Approvals: C UL US, EAC, LLC CDC TYSK
- UL Approved Refrigerants: R407C
- PED Category: Art. 4, Par. 3
- SCIP Dossier No: d44ec740-dfe8-4c0a-9644-96406f010504
- EU RoHS: Out of scope
- China RoHS: Out of scope
