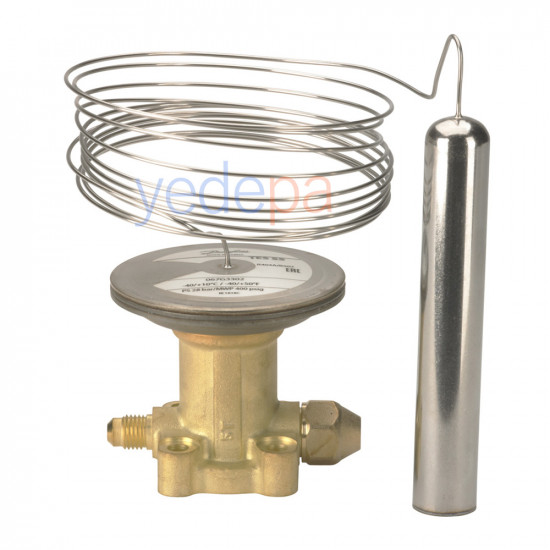

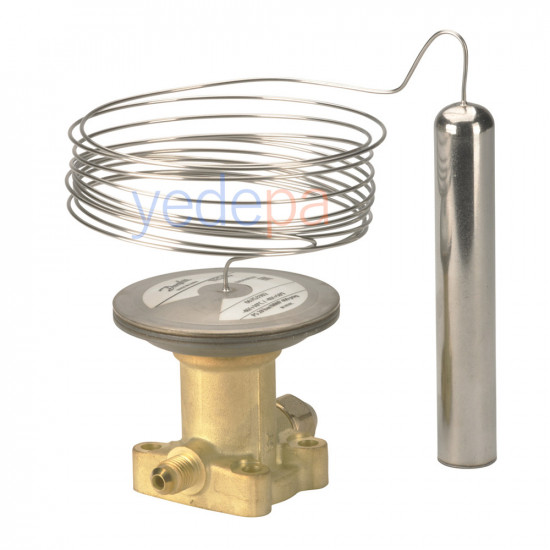

Danfoss TE 20 Expansion Valve Top Body – R22/R407C, External Equalisation, 3000 mm Capillary, 067B3274

Product Description

The TE 20 expansion valve top body with code Danfoss 067B3274 is compatible with R22 and R407C refrigerants and has an externally equalised design. Thanks to its 3000 mm capillary tube, it provides flexibility in large system installations. With its -40°C to 10°C operating temperature range, it fits high-performance refrigeration applications perfectly.

Technical Specifications

• Product Type: Expansion Valve Top Body (Element)
• Model: TE 20
• Part Number: 067B3274
• EAN: 5702428094016
• Refrigerants: R22 / R407C
• Pressure Equalisation: External (Externally Equalized)
• Capillary Tube Length: 3000 mm (118 inch)
• Temperature Range: -40°C ~ 10°C
• Equalisation Connection: 1/4 inch Flare
• Maximum Working Pressure: 28 bar (400 psig)
• Body Material: Brass
• Gross Weight: 0.724 kg
• Net Weight: 0.63 kg

Applications

• Application: Commercial and industrial refrigeration systems
• Compatible Body Series: TEH (compatible with TE 20 bodies)
• Installation: Suitable for use in externally equalised systems

Certificates and Compliance

• Approvals: EAC, LLC CDC TYSK
• EU RoHS: Out of scope
• China RoHS: Compliant
• REACH: Contains lead (CAS No: 7439-92-1)
