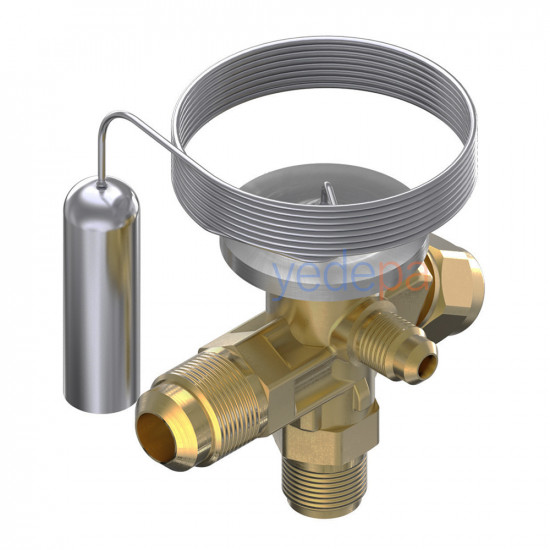

Danfoss TE 2 Thermostatic Expansion Valve - R404A / R507A, Externally Equalized, -60°C, 3/8" x 1/2" Flare - Part No: 068Z3411
- Stock: In Stock
- Brand: Danfoss
- Model: 18.10.200
Product Description
The Danfoss TE 2 thermostatic expansion valve is a valve specially developed for R404A and R507A refrigerants, externally equalized and suitable for operation at very low temperatures. It is designed to operate effectively at temperatures between -60°C and -25°C. It has 3/8" inlet and 1/2" outlet flare connections. It is delivered with a 1500 mm long capillary tube and a sensor strap. Thanks to its -20°C MOP (Maximum Operating Pressure) point, it optimizes system safety.
Technical Specifications
- Brand: Danfoss
- Model: TE 2
- Part Number: 068Z3411
- EAN: 5702422125112
- Refrigerants: R404A, R507A
- Connection Type: Flare, 3/8" inlet – 1/2" outlet
- Equalization Type: External Equalization (1/4" flare)
- Operating Temperature Range: -60°C to -25°C
- MOP Point: -20°C (MOP 30 psig / -5°F)
- Superheat Setting: Adjustable
- Static Superheat: 4 °C (7.2 °F)
- Capillary Tube Length: 1500 mm (59 inch)
- Flow Direction: One-way (with direction arrow on the body)
- Body Material: Brass
- Maximum Working Pressure: 34 bar (500 psig)
- Service Status: Serviceable (spare parts available)
- Accessories: Sensor strap included
Certificates and Conformity
- Approvals: EAC, LLC CDC TYSK
- CE Conformity: Yes
- PED Category: Article 4, Paragraph 3
- EU RoHS Compliance: Yes (exemption: 6(a), 6(c))
- China RoHS: Exceeds limit
- SCIP Dossier No: c164ed45-f10d-4d73-9eae-355ccb479f4b
