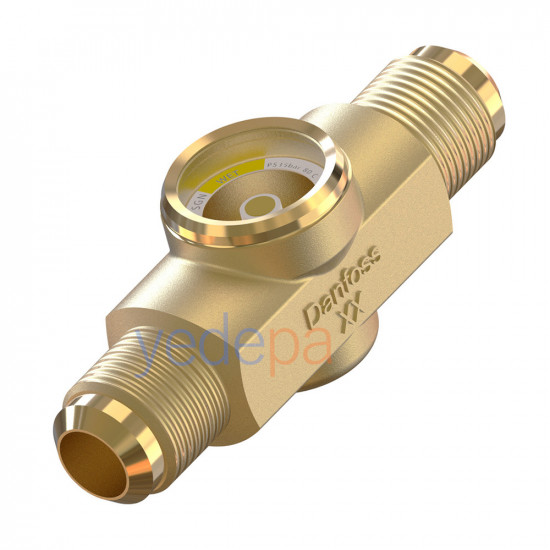

Danfoss SGN 16 Sight Glass – Flare 5/8", N Type with Moisture Indicator, 35 bar MWP (014-0165)

Product Description

The Danfoss SGN 16 sight glass (014-0165) allows the condition of the refrigerant and the amount of moisture in refrigeration and air conditioning systems to be monitored. With its 5/8" (16 mm) flare connection, this product clearly reports the moisture level in the system with its colour-changing N type indicator. With a maximum working pressure of 35 bar and a temperature range of -50°C to +80°C, it is a safe and efficient monitoring solution.

Technical Specifications

• Product Code: 014-0165
• Model: SGN 16
• Connection Type: Flare
• Connection Size: 5/8 inch (16 mm)
• Body Material: Brass
• Moisture Indicator: N type colour moisture indicator
• Maximum Working Pressure: 35 bar (500 psig)
• Temperature Range: -50°C to +80°C
• Suitable Refrigerants: R134a, R22, R404A, R407C, R448A, R449A, R507A, R513A and more
• Oil Compatibility: Suitable for oil-free applications

Moisture Indicator Colour Ranges

Green Limit at 25°C: 20 ppm for R404A / 30 ppm for R134a

Start of Yellow at 43°C: 100 ppm for R404A / 170 ppm for R134a

Areas of Use

Widely used in commercial and industrial refrigeration systems. It is an ideal accessory for observing the refrigerant in the refrigeration cycle and detecting the presence of moisture. It is particularly important in terms of system safety and performance control.

Advantages

• Fast diagnosis thanks to the N type moisture indicator
• Wide refrigerant compatibility
• Standard 5/8" flare connections for easy installation
• Resistance to high working pressure
• Non-serviceable, maintenance-free construction
