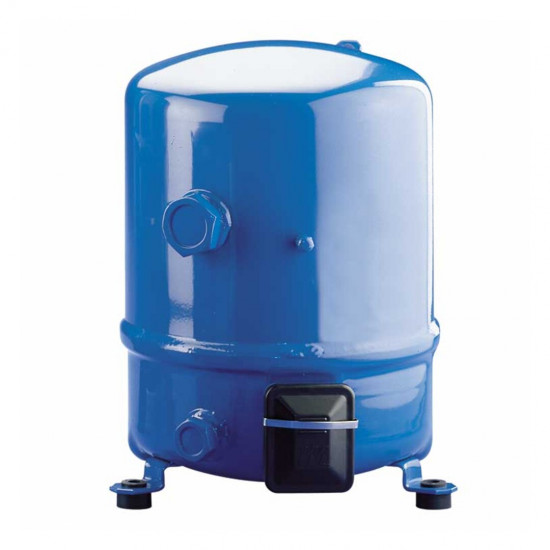

Danfoss MTZ 072-3VI Hermetic Reciprocating Compressor (MTZ72HN3BVE) - 120.94 cm³, 6 HP, 63,840 BTU/h, 2 Cylinders, R404A/R134a/R452A, 230V 3 Phase 60Hz

Designed for high capacity and durability in commercial and industrial refrigeration systems (medium / high temperature), the Danfoss Maneurop MTZ 072-3VI is a hermetic reciprocating compressor (Danfoss model: MTZ72HN3BVE). With its 2-cylinder design, 120.94 cm³ displacement and 6 HP power, it is suitable for cold rooms, supermarket display cases, process cooling and beverage cooling applications. In addition to R404A/R507 and R134a, it also works with the low-GWP alternative refrigerants R452A, R449A, R448A, R513A, R454C; it is charged with POE oil. This 3VI variant has a 200-230V / 3 phase / 60 Hz motor.

2-Cylinder Maneurop MTZ Reciprocating Compressor — 6 HP / 63,840 BTU/h

The Maneurop MTZ series offers the high efficiency and field-proven durability of reciprocating technology. Internal thermal motor protection, a wide operating envelope (evaporating down to -35°C) and rotalock service valve connections make installation and servicing easy. It runs at 3500 rpm (60 Hz).

Key Technical Features and Equipment

• Nominal Capacity: 6 HP (6 horsepower) / 63,840 BTU/h (18,710 W) — R404A, te +5°C / tc +50°C (50Hz basis).
• 2-Cylinder Reciprocating Design: High efficiency, low vibration, long service life.
• Wide Refrigerant Compatibility: R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R513A, R454A, R454C, R455A.
• Internal Motor Protection: Thermal (internal overload) protection.
• Rotalock Connection: Suction 1 3/4 inch, discharge 1 1/4 inch service valve (with ODF sleeve).
• Power Supply: 200-230V / 3 phase / 60 Hz (3VI variant); IP55, CE / UL / UKCA approved.

Technical Specifications

• Brand / Model: Danfoss Maneurop / MTZ 072-3VI (Model code: MTZ72HN3BVE)
• Type: Hermetic reciprocating, 2 cylinders, fixed speed
• Application: Commercial / industrial refrigeration (medium / high temperature - MT/HT)
• Nominal Power: 6 HP (6 horsepower)
• Cooling Capacity: 63,840 BTU/h (18,710 W) — R404A, te +5°C / tc +50°C (50Hz basis)
• Displacement: 120.94 cm³ (25.4 m³/h @ 3500 rpm)
• Compatible Refrigerants: R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R513A, R454A, R454C, R455A
• Power Supply: 200-230V / 3 phase / 60 Hz (3VI variant)
• Speed: 3500 rpm (60Hz)
• Current: MCC 35 A / MOC 31.8 A / LRA (locked rotor) 135 A; winding resistance 0.56 Ω
• Motor Protection: Internal thermal (internal overload)
• Oil: POE 175PZ, 1.8 L (oil equalization port 3/8 inch flare SAE)
• Connection: Suction 1 3/4 inch rotalock (7/8 inch tube), discharge 1 1/4 inch rotalock (3/4 inch tube)
• Operating Envelope: High side -35 / +150°C (max 29.4 bar); low side -35 / +50°C (max 22.6 bar); max refrigerant charge 5 kg
• Max. Starts: 12 starts/hour
• Protection Class: IP55 (with cable gland)
• Approvals: CE, UL, UKCA

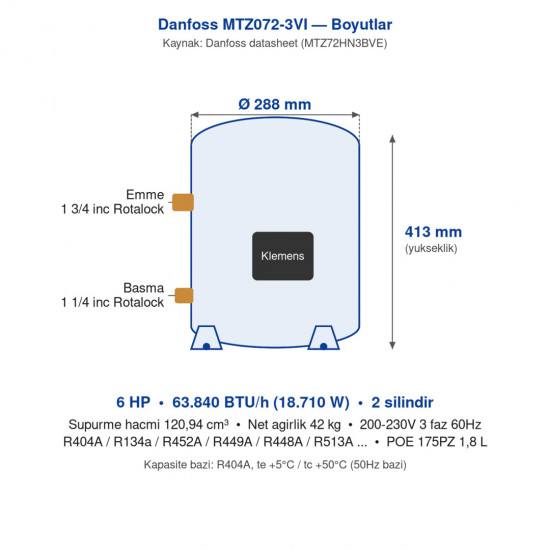

• Dimensions: Height 413 mm, diameter 288 mm
• Weight: Net 42 kg (gross 44.5 kg)

Technician Recommendations

• CAUTION — Voltage: This 3VI variant has a 200-230V / 3 phase / 60 Hz motor; do not operate it on a 400V network. For 380-415V/400V, choose the 4VI variant (MTZ72HN4CVE).
• Use the ODF sleeves supplied with the product on the rotalock service valves and braze the connections under nitrogen to prevent internal oxidation.
• POE oil absorbs moisture; keep the compressor sealed until the moment of installation and evacuate the system thoroughly before commissioning (moisture = acid + winding failure).
• Verify the phase sequence and direction of rotation at first start-up; do not allow more than 12 starts per hour.
• The stated capacity is based on te +5°C / tc +50°C (50Hz); confirm the actual capacity for 60Hz and your own evaporating/condensing temperatures with Danfoss Coolselector.
