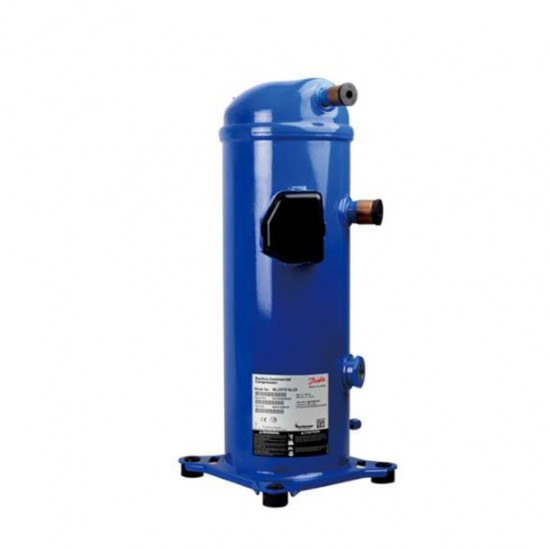

Danfoss MLZ076T4LP9 Scroll Compressor (121L8654) | 10 HP | 29,177 W (99,610 BTU/h) Cooling Capacity | R404A / R448A / R449A / R452A | 3 Phase 380-415V

Designed for supermarket, cold room, display cabinet, beverage cooler and process cooling applications, this is the Danfoss MLZ076T4LP9 fixed-speed commercial refrigeration scroll compressor (Danfoss code: 121L8654). With a displacement of 162.43 cm³ and 10 HP power, it delivers, under HBP conditions, approximately 29,177 W (99,610 BTU/h) of cooling capacity. Along with R404A/R507A, it also works with R134a, R22, R407C and the low-GWP alternatives R448A, R449A, R452A, R513A; it is filled with POE oil.

Danfoss Scroll Compressor for Commercial Refrigeration — 10 HP / 99,610 BTU/h

MLZ series Maneurop scroll compressors provide reliable performance in medium and high evaporating temperature (MT/HT) refrigeration applications with few moving parts, low vibration and high efficiency. The MLZ076 is the large-body (10 HP) model of the series; with internal motor protection and wide refrigerant compatibility, it offers easy installation and service. With a supply range of 380-415V/3/50Hz and 460V/3/60Hz, it runs on both 50 Hz and 60 Hz grids.

Key Features

• Scroll technology — few parts, low vibration, high efficiency
• Fixed speed; internal overload protector
• Wide refrigerant compatibility: R134a, R22, R404A, R407C, R448A, R449A, R452A, R507A, R513A
• 380-415V / 3 phase / 50Hz (and 460V/3/60Hz) three-phase supply
• Solder / ODF connection (suction 1 1/8 inch, discharge 7/8 inch); rotalock adapter available as an accessory; CE, UL, UKCA approved

Technical Specifications

• Brand / Model: Danfoss Maneurop / MLZ076T4LP9 (Danfoss code: 121L8654)
• Type: Scroll, fixed speed, hermetic
• Application: Commercial refrigeration — medium/high temperature (MT/HT)
• Nominal Power: 10 HP (10 horsepower) — Danfoss datasheet
• Cooling Capacity: ~29,177 W (99,610 BTU/h) — HBP (te +7.2°C / tc +54.4°C); COP ~2.18
• Displacement: 162.43 cm³ (28.3 m³/h @ 2900 rpm)
• Compatible Refrigerants: R134a, R22, R404A, R407C, R448A, R449A, R452A, R507A, R513A
• Power Supply: 380-415V/3/50Hz and 460V/3/60Hz
• Speed: 2900 rpm (50Hz) / 3500 rpm (60Hz)
• Current: RLA 19.2 A / MCC 25 A / LRA (starting) 140 A
• Motor Protection: Internal overload
• Oil: POE 215PZ

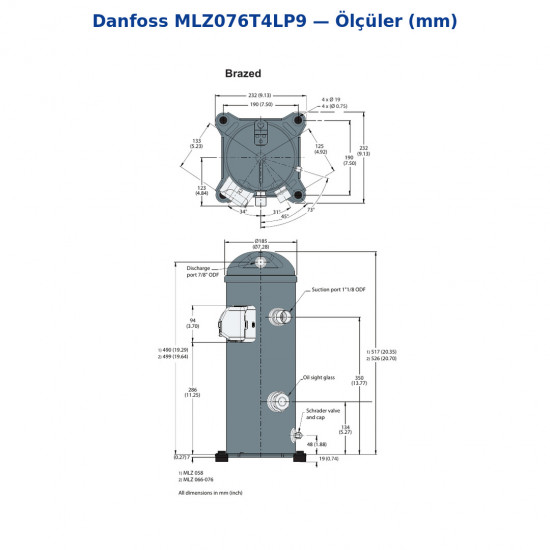

• Connection: Solder/ODF — suction 1 1/8 inch (28.6 mm), discharge 7/8 inch (22.2 mm); rotalock adapter accessory
• Pressure: High side max. 31.1 bar; low side max. 26.2 bar
• Weight: Net 45.18 kg (gross ~47.23 kg)
• Protection Class: IP22; max. 12 starts/hour
• Approvals: CE, UL, UKCA
• Equivalent (cross-reference): Copeland ZB series (medium temperature scroll, ~10 HP class)

Technician Tips

• Braze the solder/ODF connections under nitrogen to prevent internal oxidation.
• POE oil is hygroscopic; keep the compressor sealed until installation and evacuate the system thoroughly before commissioning (moisture = acid + winding failure).
• Scroll direction of rotation is critical; verify the phase sequence at first start-up (in reverse rotation no pressure builds up and noise increases).
• The stated capacity is at HBP (te +7.2°C / tc +54.4°C) conditions; confirm the actual capacity for your own evaporating/condensing temperatures with Danfoss Coolselector.
