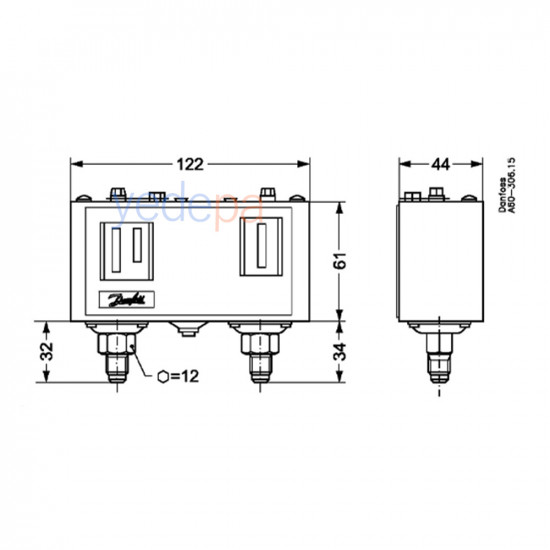

Danfoss KP15 Pressure Switch (060-514166) – Dual, SPDT, Automatic Reset, 1/4” Flare, IP44

The Danfoss KP15 model is a dual pressure switch used for both high and low pressure control in refrigeration and air conditioning systems. Thanks to its SPDT (single pole, double throw) contact design, it offers flexible control. With its automatic reset feature and IP44 protection class, it provides safe and long-lasting performance.

Key Features

• Model Code: 060-514166
• Contact Type: SPDT
• Reset Function: Automatic (for both outputs)
• Connection Size: 1/4” Flare (female)
• Protection Class: IP44

Pressure Setting Ranges

• Low Pressure Regulation Range: -0.2 to 7.5 bar
• Low Pressure Differential Setting: 0.7 – 4 bar
• High Pressure Regulation Range: 8 – 32 bar
• High Pressure Differential: Fixed 4 bar

Electrical Specifications

• Contact Rating: AC15=10A, AC1/AC3=16A, DC13=12W/220V
• Insulation Voltage: 400V
• Impulse Voltage: 4kV
• Short-Circuit Protection: 16A fuse

Technical Information

• Operating Temperature: -40°C to +65°C
• Max. Test Pressure: Left side 20 bar, right side 35 bar
• Max. Working Pressure: Left side 17 bar, right side 35 bar
• Gross Weight: 0.481 kg
• Net Weight: 0.419 kg
• Volume: 0.7 liters
• EAN: 5702428011266

Compatible Refrigerants

Suitable for use with many refrigerants compatible with oil-free systems, such as R134a, R22, R404A, R407C, R407A, R407F, R407H, R448A, R449A, R450A, R452A, R507A, R513A and R515B.

Certifications and Compliance

• CE, EAC, UL, CCC, DNV, RoHS China
• SCIP No: b1323c86-8856-44cc-b1c6-6849abe37ee4

With dual pressure control and automatic reset, the Danfoss KP15 pressure switch offers maximum control and safety in HVAC and industrial refrigeration systems.
