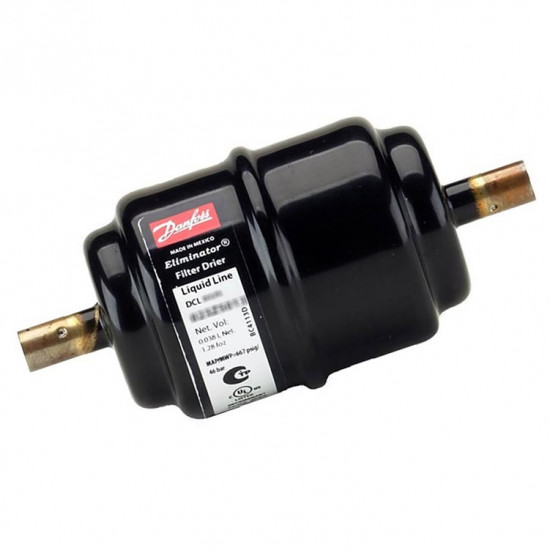

Danfoss 023Z0033 DCL 306S Filter Drier 3/4" Solder

For removing moisture, acid and solid particles in refrigeration and air conditioning circuits, the Danfoss 023Z0033 DCL 306S Filter Drier ensures healthy system operation with its 3/4" solder connection and Eliminator series solid core design. Installed in the liquid line, this filter drier extends the life of the compressor and expansion devices.

Liquid Line Filter That Protects the System from Moisture and Acid

Water droplets circulating in the refrigerant cause ice blockage and acid formation. Thanks to its solid core made of a molecular sieve and activated alumina blend, the DCL 306S retains moisture, neutralizes acid and filters out particles such as metal shavings. It is used reliably in household and commercial refrigeration systems working with mineral, alkylbenzene and POE oils, as well as in cold room and air conditioning installations.

Key Technical Features

The verified values on the label and body are given below.

• Brand: Danfoss
• Product Code: 023Z0033
• Model: DCL 306S (Eliminator Filter Drier)
• Connection Type: 3/4" Solder
• Line Type: Liquid Line
• Net Volume: 0.038 L
• Maximum Working Pressure: 46 bar (667 psig)
• Shell: Steel, corrosion-resistant black coating
• Origin: Made in Mexico
