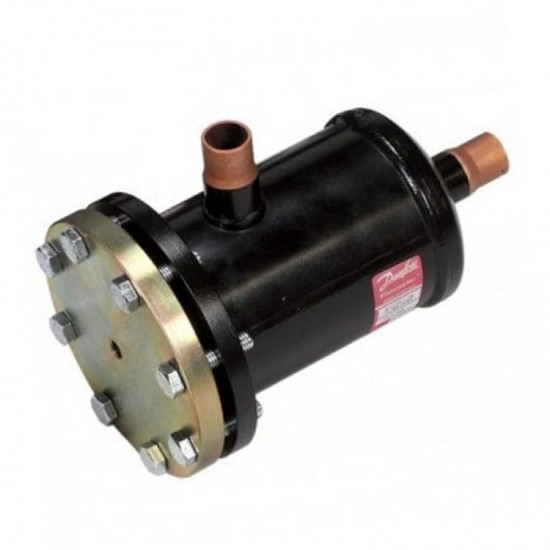

Danfoss 023U7270 DCR Filter Drier Shell - 144 cu.in. High Capacity, High Pressure Rated Filter Drier Housing

High Efficiency for Large-Scale Refrigeration Systems

The Danfoss 023U7270 DCR Filter Drier Shell is a filter drier housing designed for use in large commercial and industrial refrigeration systems, with a durable steel body and high capacity. This 144 cu.in. model offers strong, leak-tight installation with its 54 mm solder connections and its one-way flow label makes installation easy. It is compatible with DCR series spare parts.

Key Features

• Durable steel body - High resistance for industrial use
• 144 cu.in. core capacity - Ideal for large-volume refrigeration systems
• 2 1/8 inch (54 mm) ODF solder connections - Strong and secure connection
• 46 bar (667 psig) maximum operating pressure - Superior performance in high-pressure systems
• Suitable for oil-free applications - Full compatibility with modern refrigerants
• Compatible with serviceable DCR spare parts - Easy maintenance and long service life
• Package contents: 1 cover, 6 felt gaskets, 8 connection bolts

Technical Data

• Product Type: DCR (DCR 14417s)
• Core Size: 144 cu.in.
• Connection Material: Copper
• Connection Type: Solder (ODF)
• Connection Size: 2 1/8 inch (54 mm)
• Body Material: Steel
• Gross Weight: 9.236 kg
• Net Weight: 7.4 kg
• Total Volume: 24.795 liters
• Shell Volume: 4.85 liters (164.29 floz)
• Core Volume: 3.577 liters (120.96 floz)
• Maximum Operating Pressure: 46 bar (667 psig)
• Temperature Range: -40°C to +70°C
• Flow Direction: One-way (indicated by label)

Compatible Refrigerants

The Danfoss 023U7270 DCR Filter Drier Shell is compatible with the following refrigerants:

• R1234ze(E), R125, R134a, R22/R407C, R23
• R404A, R407A, R407F, R410A, R438A
• R448A, R449A, R449B, R450A, R452A, R507A, R513A

Applications

The Danfoss 023U7270 DCR Filter Drier Shell is designed to provide high reliability and long service life in large-scale commercial and industrial refrigeration systems. It provides safe filtration in high-pressure refrigeration cycles, removing moisture and acid. Thanks to its compatibility with modern refrigerants, it offers environmentally friendly solutions.
