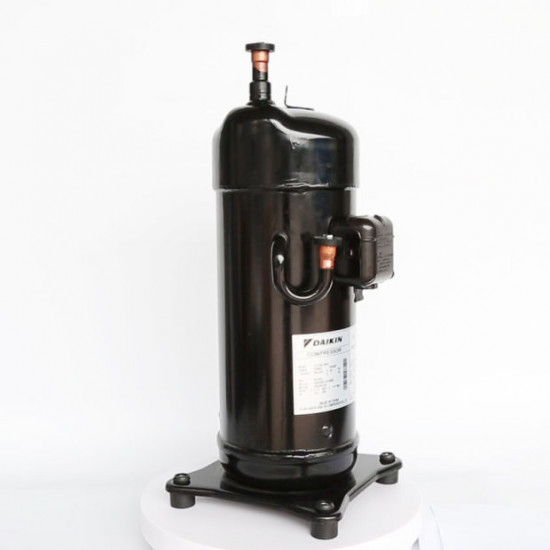

Daikin JT180L-P8Y1 R410A (61,100 BTU) Air Conditioner Scroll Compressor - 6 HP, 380V (3 Phase), 16,710 Watt

Product Description

The Daikin JT180L-P8Y1 R410A (61,100 BTU) Air Conditioner Scroll Compressor is a first-class refrigeration component that delivers high performance, durability and energy efficiency. Rated at 6 HP, this compressor is compatible with R410A refrigerant and is ideal for commercial and industrial air conditioning applications. Thanks to its robust construction and quiet operation, it offers maximum comfort to its users.

Technical Specifications

• Brand: Daikin
• Compressor Type: Scroll
• Operating Range: HBP (+7.2°C / +54.4°C)
• Compressor Power: 6 HP
• Power Supply: 380V (3 phase)
• Refrigerant: R410A
• Cooling Capacity: 16,710 Watt
• BTU Rating: 61,100 BTU
• Motor Type: 3 phase
• Compressor Model: JT180L-P8Y1
• Displacement: 64.09 cm³/rev
• Frequency: 50-60 Hz
• Suction Line: 3/4"
• Discharge Line: 5/8"
• Weight: 38.8 kg (including oil)
• Oil Type: DAPHNE FVC68D
• Nominal Speed: 2900/3480 rpm

Advantages and Applications

• Energy Efficiency: High-performance operation and low energy consumption.
• Wide Operating Range: Effective performance in the +7.2°C to +54.4°C temperature range.
• Low Vibration and Quiet Operation: A comfortable working environment with a maximum sound pressure of 52 dBA.
• Durability: Long service life thanks to quality materials and rigorous testing processes.

Usage Recommendations

For safe and long-lasting operation of the compressor, the following points should be observed:

• Safety devices (phase protection, high/low pressure switch) must be installed correctly.
• The discharge gas temperature must not exceed 130°C.
• The motor winding temperature must be kept below 125°C.
• The maximum number of operating cycles should be limited to 12 per hour.
