Cubigel GL90TB Hermetic Compressor – 1/4 HP, R134a, HBP 791 W

The Cubigel GL90TB (GL 90 TB) is a 1/4 HP hermetic reciprocating compressor manufactured for commercial refrigeration appliances operating at positive temperatures, such as beverage coolers, display cabinets, water dispensers and bottle coolers. It runs on R134a; with its 8.85 cm³ displacement it delivers a cooling capacity of 791 W (2,699 BTU/h) at the ASHRAE HMBP condition. It is the 1/4 HP model of the GL series, also searched for in the field as a "refrigerator motor".

1/4 HP HMBP Compressor on R134a: For Beverage and Display Coolers

With its L-series housing, the GL90TB operates in the −25 … +10 °C evaporating range with its fan-cooled construction and CSIR (start capacitor) motor; it can be used in capillary tube and expansion valve systems. The manufacturer's data sheet also states it is compatible with R1234yf.

Key Technical Features and Equipment

• Brand / Model: Cubigel GL90TB · L series
• Refrigerant: R134a · compatible refrigerant R1234yf
• Application: HMBP (high-medium back pressure) · evaporating −25 … +10 °C
• Displacement: 8.85 cm³ · bore 25.40 mm · stroke 17.47 mm
• Motor: CSIR · locked rotor current (LRA) 12 A · max. continuous current 3 A
• Winding resistance (25 °C): main 11.30 Ω · auxiliary 27.80 Ω
• Supply: 220-240 V / 50 Hz single-phase · operating range 187-264 V
• Cooling: fan-cooled · expansion: capillary tube or expansion valve
• Oil: ISO VG 32 ester, 295 cm³
• Tube inside diameters: suction Ø6.5 · service Ø6.5 · discharge Ø4.9 mm

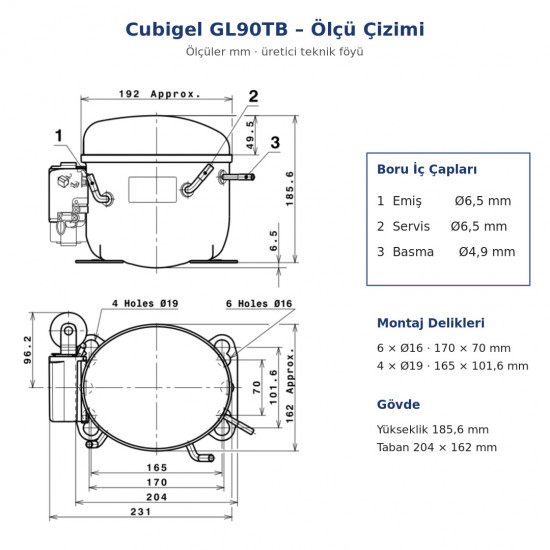

• Dimensions: height 185.6 mm · base 204 × 162 mm (231 mm with terminal box)
• Mounting holes: 6 × Ø16 (170 × 70 mm) · 4 × Ø19 (165 × 101.6 mm, American-type feet)
• Weight: 9.34 kg · max. ambient temperature 43 °C

Performance (ASHRAE, Condensing +55 °C)

ASHRAE: liquid 46 °C, ambient and suction 35 °C. At the CECOMAF HMBP condition (+5 °C, liquid 55 °C): 660 W, 348 W input power, COP 1.90. Capacity decreases as the evaporating temperature falls; make your selection according to your cabinet target temperature.

Electrical Equipment (Manufacturer References)

• Start capacitor: 47-56 µF 330 V
• Relay: 2014 138 or QLZ-6.1A (pull-in 6.1 A / drop-out 5.2 A)
• Overload protector: T0057, AE39FHY or B90-105 (8.5-9.4 A · open / close 105-110 / 61-62 °C)

• 🔧 When replacing: In the CSIR connection the start capacitor is used together with the relay; compare the refrigerant, HMBP class and mounting hole spacing of the old compressor with the dimensional drawing.
• Application limit: This model is HMBP — it is for positive-temperature coolers. It is not used in freezer (LBP) applications.
