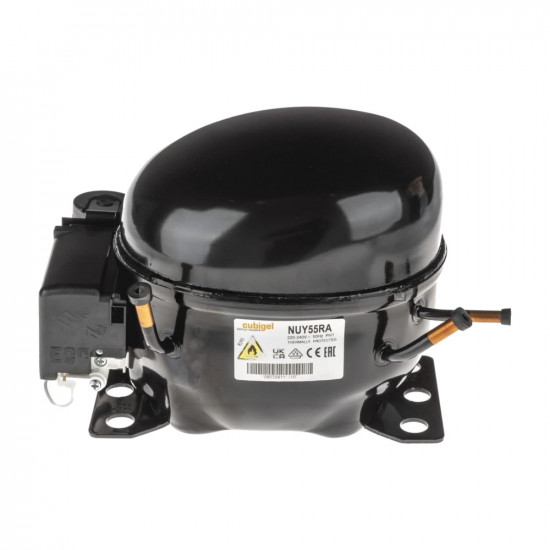

Cubigel NUY55RAa Hermetic Compressor – 1/5 HP, R290, HBP 778 W

Cubigel NUY55RAa is a 1/5 HP hermetic reciprocating compressor made for light commercial appliances operating at positive temperatures, such as bottle coolers, beverage coolers, display cabinets and water dispensers. It runs on R290 (propane); with a displacement of 5.5 cm³ it delivers a cooling capacity of 778 W (2,655 BTU/h) at ASHRAE HMBP conditions.

R290 Propane HMBP Compressor: For Bottle Coolers, Beverage Coolers and Display Cabinets

Built on the U series body, the NUY55RAa can be used in both capillary tube and expansion valve systems with its fan-cooled design and CSIR (start capacitor) motor. At HMBP ASHRAE conditions it operates efficiently with COP 2.69. Propane has a GWP of 3; it is a suitable option for low-charge systems that are not affected by F-Gas restrictions.

Key Technical Specifications and Equipment

• Brand / Model: Cubigel NUY55RAa · U series
• Refrigerant: R290 (propane) · explosion safety approved to EN 60335-2-34 for R290 and R600a
• Application: HMBP (high-medium back pressure) · evaporating −25 … +10 °C
• Displacement: 5.50 cm³ · bore 21.99 mm · stroke 14.50 mm
• Motor: CSIR · locked rotor current (LRA) 12.6 A · max. continuous current 3.0 A
• Power supply: 220-240 V / 50 Hz single-phase · operating range 187-255 V
• Cooling: fan-cooled · expansion: capillary tube or expansion valve
• Oil: ISO VG 22 ester, 220 cm³

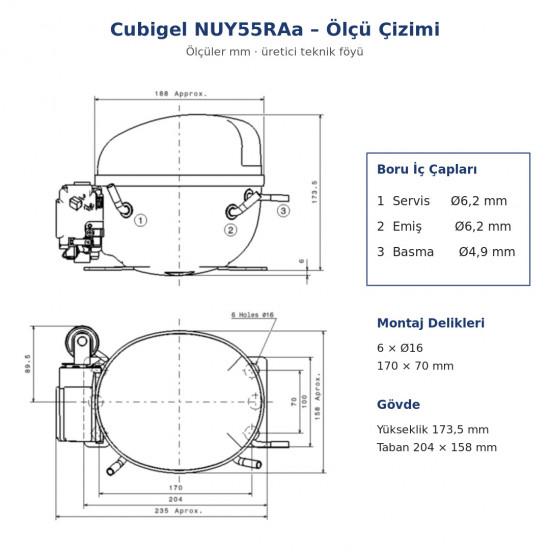

• Tube inner diameters: service Ø6.2 · suction Ø6.2 · discharge Ø4.9 mm
• Dimensions: height 173.5 mm · base 204 × 158 mm (235 mm with terminal box)
• Mounting holes: 6 × Ø16 (170 × 70 mm)
• Weight: 9.5 kg · max. ambient temperature 43 °C

Performance (ASHRAE, Condensing +55 °C)

ASHRAE: liquid 46 °C, ambient and suction 35 °C. At CECOMAF HMBP conditions (+5 °C, liquid 55 °C) 653 W, 284 W power input, COP 2.29. Capacity decreases as the evaporating temperature drops; make your selection according to the target cabinet temperature.

Electrical Equipment (Manufacturer References)

• Start capacitor: 47-56 µF 330 V
• Relay: 2014 118 or QLZ-3.75A (pick-up 3.75 A · drop-out 3.20 A)
• Overload protector: T0269 or B96-105

• 🔥 R290 is a flammable refrigerant (class A3). Brazing, leak testing and charging must be carried out according to the rules for flammable refrigerants: a ventilated area, no ignition sources and compliance with charge limits are essential. This compressor is for R290 systems only.
• 🔧 When replacing: the start capacitor and relay are fitted according to the CSIR connection; compare the refrigerant, HMBP class and mounting hole spacing of the old compressor with the dimension drawing.
• Application limit: This model is HMBP — it is for positive-temperature coolers. It is not used in chest freezer and ice cream cabinet (LBP) applications.
