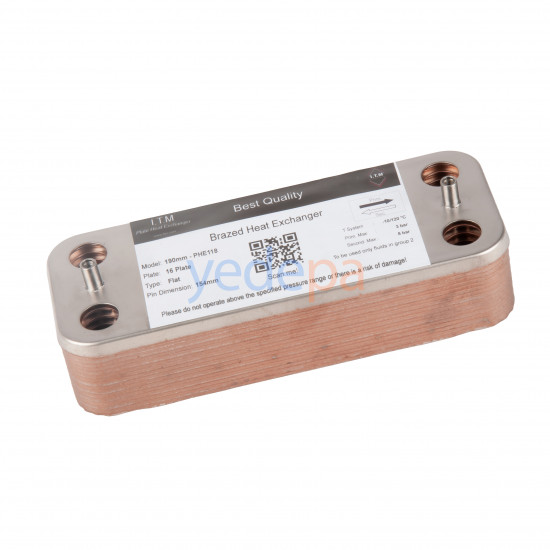

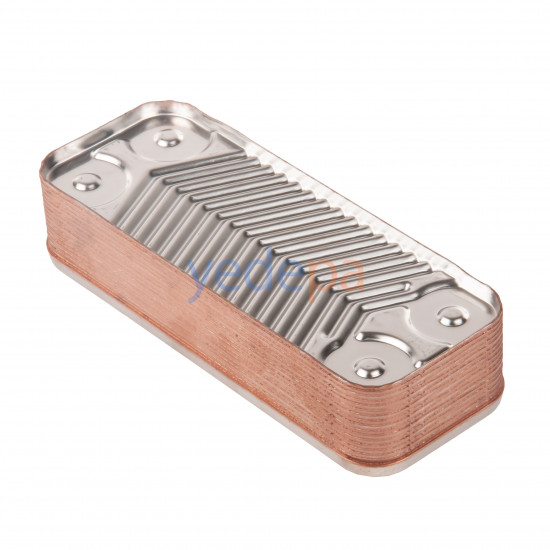

Combi Boiler Plate Heat Exchanger - 154 mm, 16 Plates, ECA, Bosch, Viessmann and Alarko Serena Compatible

Durable and Efficient Plate Heat Exchanger for Combi Boilers

The ITM plate heat exchanger is a high-quality spare part designed to optimize heat transfer in combi boilers. 190 mm long and consisting of 16 plates, this heat exchanger can be used in compatible models of ECA, Bosch, Viessmann, Alarko Serena and other brands.

Features

• Model: ITM1901606
• Size: 190 mm

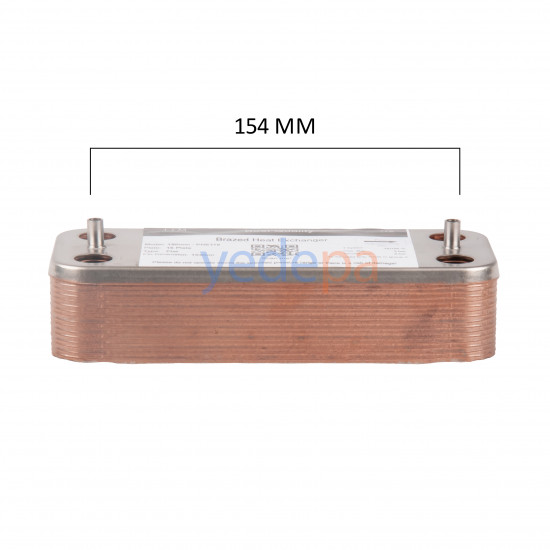

• Distance Between Two Screws: 154 mm
• Number of Plates: 16
• Operating Temperature: -10°C to 120°C
• Primary Max. Pressure: 3 bar
• Secondary Max. Pressure: 8 bar
• Pin Type: Flat

Compatible Brands and Models

• ECA
• Bosch
• Viessmann
• Alarko Serena
• Other compatible models

Product Advantages

• High heat transfer efficiency
• Long-lasting and durable design
• Easy installation and maintenance

Product Applications

The ITM plate heat exchanger is ideal for increasing energy efficiency in the heating and hot water systems of combi boilers. Thanks to its special design, it provides tight sealing and operates with low pressure loss.

Frequently Asked Questions

What does a combi boiler plate heat exchanger do?

The plate heat exchanger performs heat transfer in the combi boiler, providing heating and hot water production. Thanks to efficient heat transfer, it increases the energy efficiency of the system and operates with low pressure loss.

Which combi boiler brands is this 16-plate heat exchanger compatible with?

It is compatible with the ECA, Bosch and Viessmann brands and the Alarko Serena model. It is recommended that you verify its suitability for your own combi boiler using the screw spacing (154 mm) and the number of plates (16).

What is the product code of the plate heat exchanger?

The code of the I.T.M brand heat exchanger is ITM1901606; the Yedepa product code is PHE118.

What are the technical specifications of this plate heat exchanger?

The heat exchanger is 190 mm long and has 16 plates; the distance between the two screws is 154 mm. It operates at a maximum pressure of 3 bar in the primary circuit and 8 bar in the secondary circuit, between -10°C and 120°C; the pin type is Flat.
