TC-8080H Digital Thermostat and Temperature Controller (220V, with Defrost)

Designed for professionals who want to manage precise temperature control and timed defrost in refrigeration systems with a single device, the TC-8080H Digital Thermostat offers a wide measuring range and reliable performance. Operating with a single NTC sensor, this device is a suitable solution for industrial cabinets, cold storage rooms and display refrigerators.

Full Protection with Timed Defrost

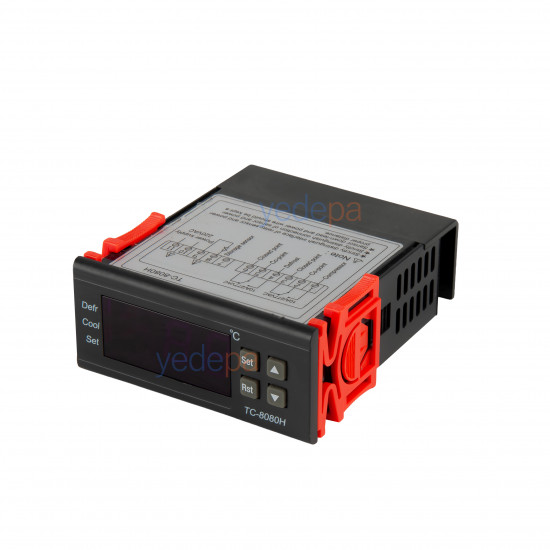

The device automatically starts defrost at the time intervals you set, preventing frost build-up on the evaporator. This feature improves system efficiency and extends compressor life. Thanks to its large digital display, you can easily monitor the current temperature and the operating status of the device (Defrost, Cool, Set).

Key Technical Specifications and Equipment

The technical details of the TC-8080H model, notable for its compact design and easy installation, are as follows:

• Model: TC-8080H Temperature Controller
• Voltage (Power Supply): 220VAC

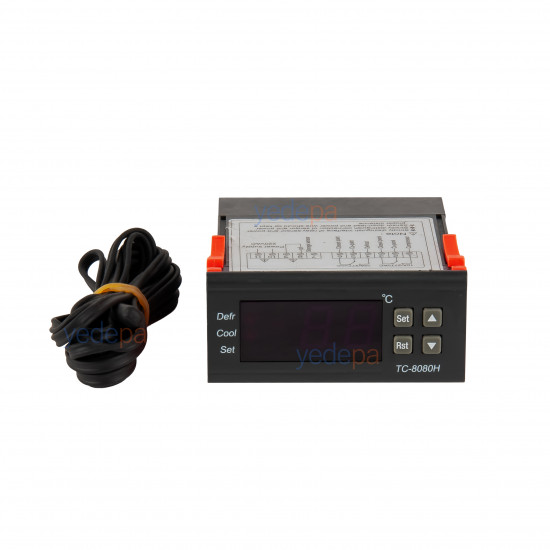

• Sensor: 1 x NTC Sensor (included in the package)
• Temperature Measuring Range: -30 ºC / +110 ºC
• Ambient Operating Temperature: 0 ºC / +60 ºC
• Accuracy: ± 1 ºC
• Panel Dimensions: 64x31 mm
• Cut-Out Dimensions: 58.4x25.7 mm

Practical Usage Note for Technicians in the Field

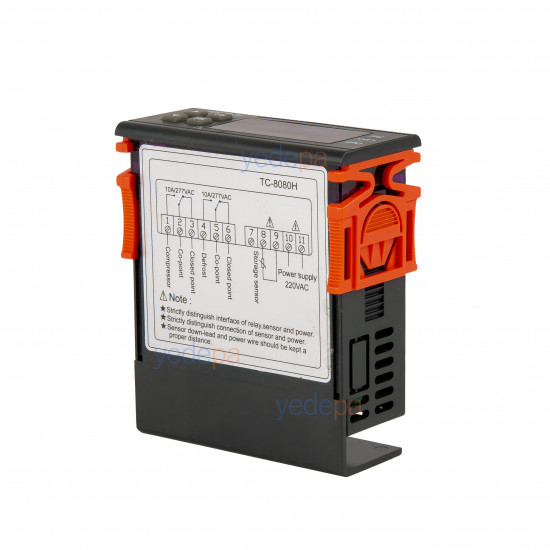

Technician's Note: When making the connections, wire the relay, sensor and power terminals carefully according to the diagram on the device label. For long-lasting, stable operation of the device, route the NTC sensor cable separately and at a distance from high-current power cables (especially the compressor supply). This prevents electrical interference caused by magnetic fields and gives you the most accurate temperature reading without fluctuations on the display.
