Embraco NTX6238U Hermetic Compressor | 1.5 HP | 9,333 BTU/h (HBP) | R290 Propane | 220-240V 50Hz

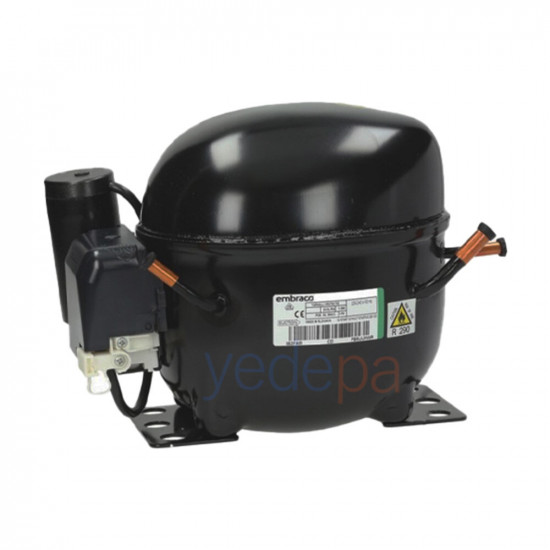

Embraco NTX6238U is a 1.5 HP X-Generation hermetic reciprocating compressor for medium-high temperature (HMBP) commercial refrigeration applications. It operates with R290 (propane) refrigerant and is compatible with the Turkish mains with its 220-240V / 50Hz single-phase supply. Under ASHRAE HBP conditions (+7.2°C / +54.4°C) it provides approximately 9,333 BTU/h (2,735 W) of cooling capacity. Its high-efficiency X-gen motor ensures low energy consumption.

R290 Propane, 220-240V Hermetic Reciprocating Compressor (HMBP)

It is used in display cabinets, coolers, beverage coolers and medium/high temperature commercial refrigeration systems. R290 (propane) is an A3 class flammable refrigerant; installation and service must follow flammable refrigerant safety rules.

Key Features

• 1.5 HP X-Generation high-efficiency hermetic reciprocating compressor
• ~9,333 BTU/h cooling capacity (ASHRAE HBP +7.2/+54.4°C)
• R290 (propane) refrigerant — low GWP, high efficiency
• 220-240V / 50Hz single-phase — compatible with the Turkish mains
• HMBP medium-high temperature application; CSCR motor

Technical Specifications

• Brand / Model: Embraco (Nidec) / NTX6238U
• Type: X-Generation hermetic reciprocating (recip) compressor
• Application: HMBP (medium-high temperature commercial refrigeration)
• Nominal Power: 1.5 HP
• Cooling Capacity: ~9,333 BTU/h (2,735 W) — ASHRAE HBP (+7.2°C / +54.4°C). On the EN12900 curve ~2,172 W at -10°C, ~3,727 W at +5°C
• Displacement: 33.42 cm³ · ~3000 rpm (50Hz) · CSCR motor · ~5.6 A
• Power Supply: 220-240V / 1~ / 50Hz (SINGLE-PHASE)
• Refrigerant: R290 (propane, A3 flammable)
• Oil: POE ~450 ml · Net weight ~17.8 kg

Technician Tips

• R290 is flammable (A3): Carry out charging, recovery and brazing in a spark-free, well-ventilated area, following flammable refrigerant procedures.
• Keep the charge at the manufacturer's value according to the system volume; avoid overcharging R290 systems.
• Braze the connections under nitrogen and fit a filter drier; POE oil is hygroscopic, so complete the installation quickly.
• It is intended for HMBP applications; do not use it in freezer (LBP) applications.
