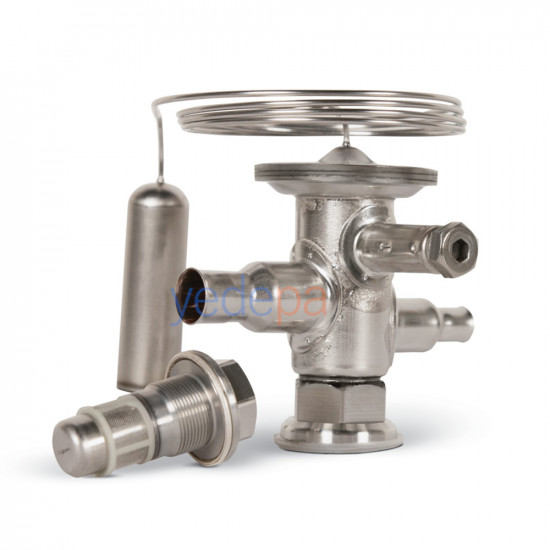

Danfoss TUA Thermostatic Expansion Valve - R410A, Internally Equalized, 3/8" x 1/2" Solder (ODF) - Part No: 068U2414

Product Description

The Danfoss TUA thermostatic expansion valve is a compact expansion valve specially designed for R410A refrigerant, internally equalized and resistant to high working pressure. With solder (ODF) connections of 3/8 inch inlet and 1/2 inch outlet, this model is resistant to demanding ambient conditions thanks to its stainless steel body and bimetal connection construction (steel/copper). A 1500 mm long capillary tube and sensor strap are supplied with the product.

Technical Specifications

• Brand: Danfoss
• Model: TUA
• Part Number: 068U2414
• EAN: 5702428093262
• Refrigerant: R410A
• Connection Type: Solder (ODF), 3/8" inlet – 1/2" outlet
• Equalization Type: Internal Equalization (internally equalized)
• Operating Temperature Range: -40°C to +10°C
• Superheat Setting: Adjustable
• Static Superheat: 4 °C (7.2 °F)
• Capillary Tube Length: 1500 mm (59 inch)
• Flow Direction: One-way (with laser-marked arrow)
• Body Material: Stainless steel
• Connection Material: Bimetal: Steel / Copper
• Maximum Working Pressure: 45.5 bar (660 psig)
• Service Status: Serviceable (spare parts available)
• Accessories: Sensor strap included

Nominal Capacity (At Standard Conditions)

• SI: OS = 4K, Tcond = 38°C, Tevap = 4.4°C, Tliq = 37°C
• Imperial: OS = 7.2°F, Tcond = 100°F, Tevap = 40°F, Tliq = 98°F

Certificates and Conformity

• Approvals: UL, EAC, LLC CDC TYSK
• CE Conformity: Yes
• PED Category: Article 4, Paragraph 3
• EU RoHS Compliance: Yes (exemptions: 6(a), 6(c))
• China RoHS: Exceeds limit
• SCIP Dossier No: 07795324-de66-41b2-9761-afe6640e393c
