Brand: Danfoss
Country of Manufacture: France
Compressor Type: Scroll
Operating Range: HBP (+7.2°C / +54.4°C)
Compressor Power: 15 1/2 HP
Power Supply: 380V
Refrigerant: R407C
Cooling Capacity: 43,113 W (147,118 BTU)
Motor Type: 3 Phase
Compressor Model Code: SZ185-4RI (SZ185S4RD)
Displacement: 249.9 cm³/rev
Frequency: 50-60 Hz
Suction Line: 1 5/8"
Discharge Line: 1 1/8"

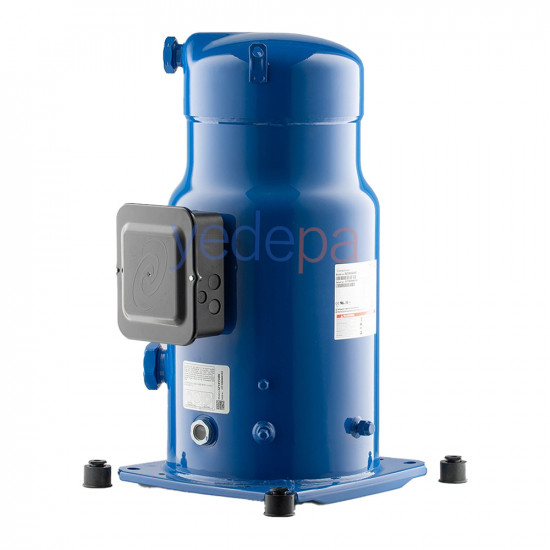

With its high-efficiency design, the Danfoss SZ185S4RD (SZ185-4RI) scroll compressor is ideal for use in commercial and industrial refrigeration systems. Rated at 15 1/2 HP with a cooling capacity of 43,113 W (147,118 BTU), this model operates with R407C refrigerant and delivers high performance with a displacement of 249.9 cm³.
The compressor operates on a 380V power supply and performs excellently in the 50-60 Hz frequency range. With its HBP (+7.2°C / +54.4°C) operating range, it provides stable performance across different temperature ranges. The suction line is 1 5/8" and the discharge line is 1 1/8", which makes installation and integration easier.
This compressor offers long service life with its durable construction and high reliability. Holding CE, UL and UKCA certifications, this model delivers reliable performance even in harsh conditions. It has a lubrication system with POE oil type and a 6.2 L oil charge.
